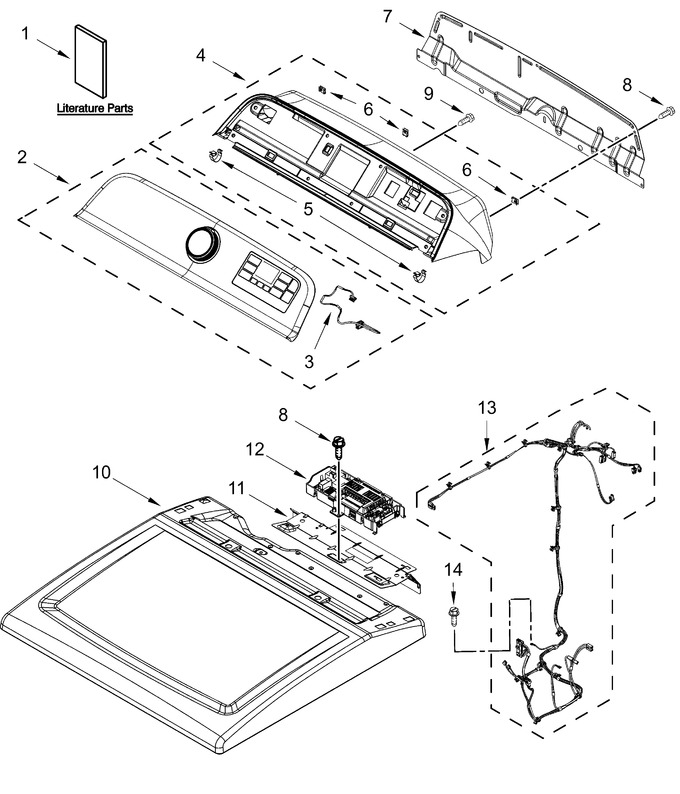

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11771780		Console Fascia Assembly (complete)   (Replaces: W11620097)		Appelez-nous	-
3	W11164312		Harness, User Interface (hmi)				$ 167.98
4	W11401363		Console Assembly (white)   (Replaces: W11178519)				$ 364.05
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11641121		Top (white)   (Replaces: W11623537)			Immediately	$ 215.10
11	W11431865		Bracket, Electronic Control				$ 57.36
12	W11782106		Appliance Control Unit (acu)   (Replaces: W11741185)		Appelez-nous	-
13	W11556661		Harness, Main		Appelez-nous	-
14	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
	W11401366		Console Assembly (chrome Shadow)   (Replaces: W11178520)			Immediately	$ 378.62
	W11641122		Top (chrome Shadow)   (Replaces: W11623547)				$ 268.82
	W11555818		Installation Instructions		Appelez-nous	-
	W11175222		Tech Sheet		Appelez-nous	-
	W11550670		Quick Start Guide		Appelez-nous	-
