View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Door Parts
Interior And Ventilation Parts
Turntable Parts
SELECT A DIAGRAM
New Model Search:

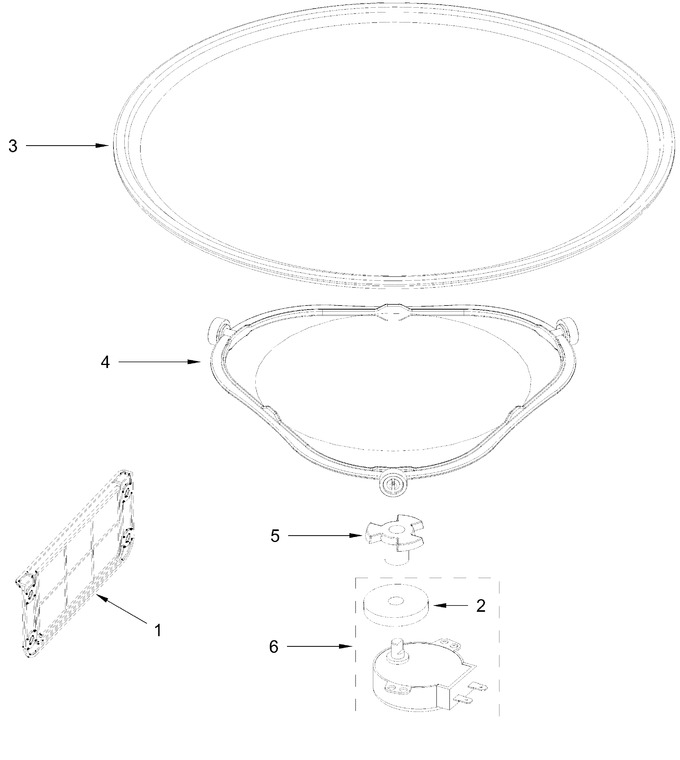

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11763417 | Cover, Waveguide (Replaces: W11238817) |
|
$ 12.77 | |||||
| 2 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 3 | W11685581 | Turntable, Glass (Replaces: W11652593) |
|
$ 78.48 | |||||
| 4 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W11193600) |
|
Immediately | $ 39.55 | ||||
| 5 | W11245707 | Driver, Turntable (Replaces: W11193599) |
|
Immediately | $ 87.61 | ||||
| 6 | W10642989 | Motor, Turntable |
|
Immediately | $ 199.95 |
