Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:

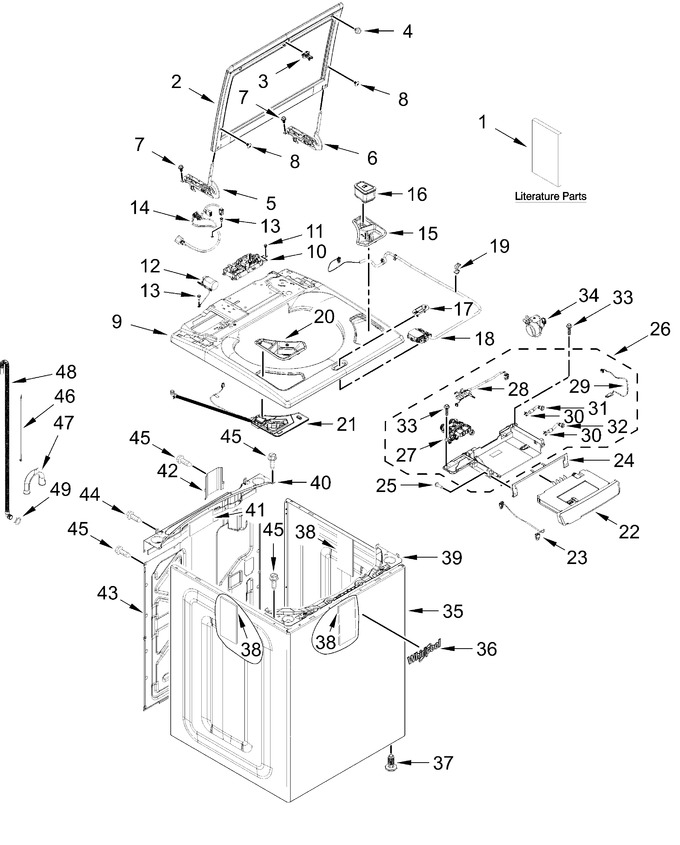

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11470212 | Lid Assembly (grey) (Replaces: W11416841) |
|
Immediately | $ 339.85 | ||||
| 3 | W11721071 | Assembly, Strike (Replaces: W11533683) |
|
Immediately | $ 7.77 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 22.19 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 106.21 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 109.68 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.23 | |||||
| 9 | W11423774 | Top (white) (Replaces: W11126907) |
|
Immediately | $ 363.60 | ||||
| 10 | W11772562 | Machine And Motor Control Unit Assembly (Replaces: W11675184) |
|
$ 382.02 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 12 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 82.59 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 39.53 | ||||
| 15 | W11662175 | Bleach Dispenser (grey) (Replaces: W11175768) |
|
$ 29.38 | |||||
| 16 | W11416456 | Brush, Scrub (Replaces: W11175764) |
|
Immediately | $ 14.30 | ||||
| 17 | W11545554 | Lid Lock Bezel (white) (Replaces: W11215078) |
|
Immediately | $ 22.30 | ||||
| 18 | W11700916 | Lid Lock Assembly (Replaces: W11543566) |
|
Immediately | $ 76.34 | ||||
| 19 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 20 | W11550898 | Bezel, Faucet Switch (Replaces: W11094976) |
|
Immediately | $ 32.19 | ||||
| 21 | W11569112 | Assembly, Faucet Switch (Replaces: W11175629) |
|
Immediately | $ 82.46 | ||||
| 22 | W11413340 | Dispenser Drawer Assembly (chrome Shadow) (Replaces: W11174984) |
|
Immediately | $ 96.90 | ||||
| 23 | W11130938 | Harness, Dispenser |
|
$ 161.32 | |||||
| 24 | W11174982 | Bezel, Dispenser |
|
$ 28.63 | |||||
| 25 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 26 | W11621181 | Assembly, Dispenser Housing & Inlet Valve (Replaces: W11570272) |
|
$ 163.19 | |||||
| 27 | W11595805 | Valve, Water Inlet (Replaces: W11528767) |
|
Immediately | $ 167.31 | ||||
| 28 | W11524851 | Harness, Water Inlet Valve |
|
$ 64.91 | |||||
| 29 | W11685945 | Sensor, Detergent Level (Replaces: W11178145) |
|
$ 145.52 | |||||
| 30 | W10715699 | Clamp, Hose |
|
$ 12.62 | |||||
| 31 | W11094606 | Hose (short) |
|
$ 30.24 | |||||
| 32 | W11174978 | Hose (long) |
|
$ 30.24 | |||||
| 33 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 34 | W11596130 | Pump, Metering (Replaces: W11238377) |
|
$ 118.94 | |||||
| 35 | W10677265 | Cabinet (white) |
|
$ 486.70 | |||||
| 36 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 37 | WPW10687506 | Leveling Foot Assembly (Replaces: W10687506) |
|
Immediately | $ 24.83 | ||||
| 38 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 22.27 | ||||
| 39 | W11381327 | Channel, Top Front |
|
Immediately | $ 74.76 | ||||
| 40 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 98.93 | |||||
| 41 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.98 | ||||
| 42 | W10676061 | Cover, Harness |
|
$ 35.02 | |||||
| 43 | W11417171 | Panel, Rear |
|
$ 264.45 | |||||
| 44 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.02 | |||||
| 45 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 46 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 47 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 48 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 49 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| W11559688 | Lid Lock Bezel (grey) (Replaces: W11215091) |
|
Immediately | $ 28.85 | |||||
| W10677266 | Cabinet (chrome Shadow) |
|
$ 492.86 | ||||||
| W11423773 | Top (chrome Shadow) (Replaces: W11126908) |
|
$ 364.95 | ||||||
| W11646252 | Owners Manual |
|
- | ||||||
| W11646516 | Quick Start Guide |
|
- | ||||||
| W11720305 | Energy Guide |
|
- |
