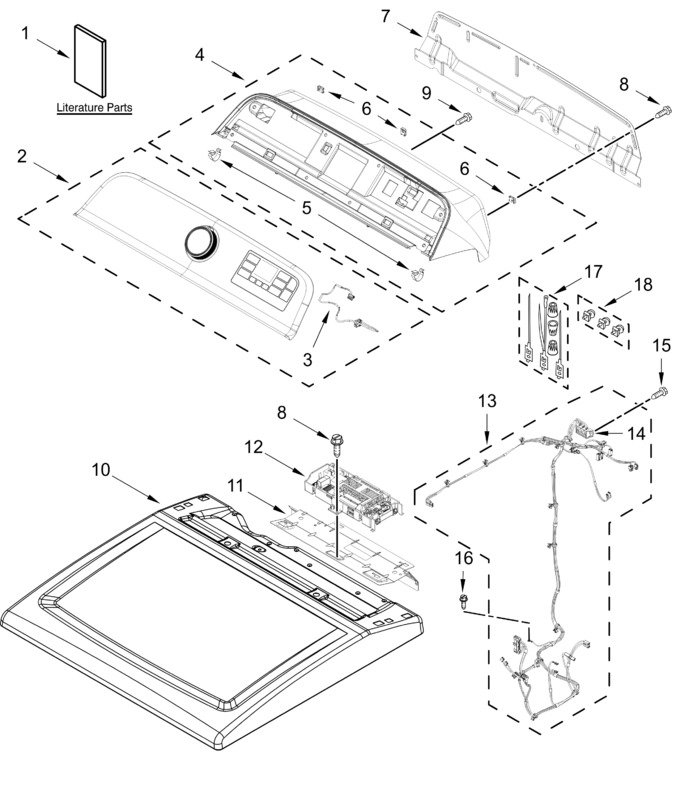

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11801598		Fascia Assembly   (Replaces: W11620082)		Appelez-nous	-
3	W11721377		Harness, User Interface (hmi)   (Replaces: W11164276)				$ 31.09
4	W11406678		Console Assembly (white)   (Replaces: W11127506)			Immediately	$ 376.76
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11641121		Top (white)   (Replaces: W11623537)			Immediately	$ 215.10
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 57.36
12	W11771778		Appliance Control Unit (acu)   (Replaces: W11741191)		Appelez-nous	-
13	W11556949		Harness, Main			Immediately	$ 251.33
14	WP3397659		Terminal Block   (Replaces: 3397659)				$ 24.17
15	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
16	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
	W11641122		Top (chrome Shadow)   (Replaces: W11623547)				$ 268.82
	W11406679		Console Assembly (chrome Shadow)   (Replaces: W11128046)				$ 378.55
	W11691183		Quick Start Guide		Appelez-nous	-
	W11691176		Installation Instructions		Appelez-nous	-
