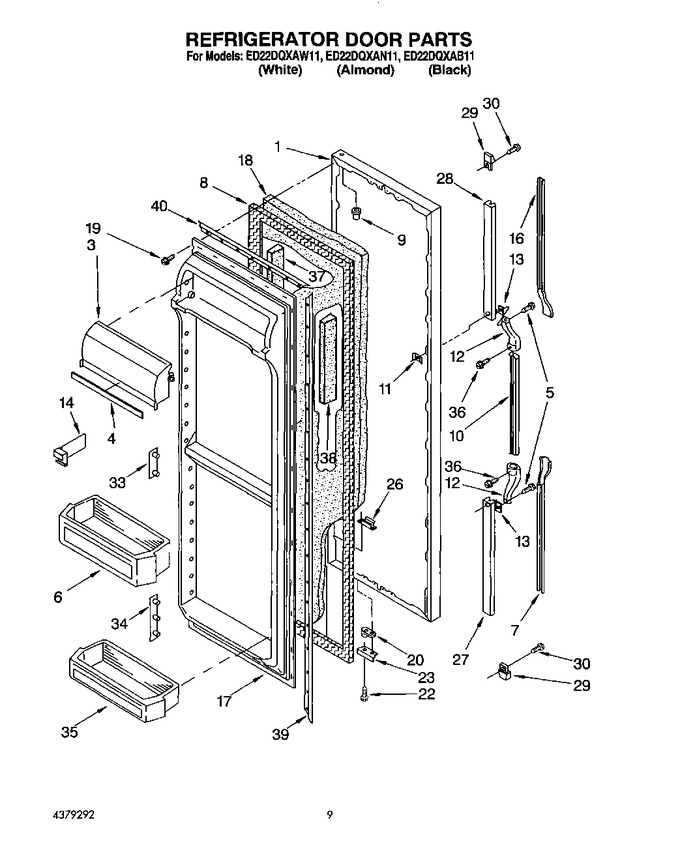

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4362041 | Refrigerator Door Panel (almond) |
|
- | |||||
| 1 | 4362043 | Refrigerator Door Panel (black (also Order Item 18)) |
|
- | |||||
| 1 | 4362040 | Refrigerator Door Panel (white) |
|
- | |||||
| 3 | 2148847 | Door, Compartment |
|
- | |||||
| 4 | 1118208 | Trim, Compartment Door |
|
- | |||||
| 5 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 6 | 1124846 | Shelf Bin (2) |
|
$ 39.62 | |||||
| 7 | 1119361 | Insert, Handle (white) |
|
- | |||||
| 7 | 1119363 | Insert, Handle (almond) |
|
- | |||||
| 7 | 1118435 | Insert, Handle (black) |
|
- | |||||
| 8 | 2188404A | Door Gasket, Magnetic (mist Beige) (Replaces: 1129266) |
|
$ 269.26 | |||||
| 8 | 2188404A | Door Gasket, Magnetic (light Grey) (Replaces: 1125927) |
|
$ 269.26 | |||||
| 9 | 509929 | Cap, Hinge Sleeve |
|
- | |||||
| 10 | 1124713 | Handle, Center (white) |
|
- | |||||
| 10 | 1118417 | Handle, Center (black) |
|
- | |||||
| 10 | 943079 | Handle, Center (almond) |
|
- | |||||
| 11 | 941242 | Screw Anchor (2) |
|
- | |||||
| 12 | 1119359 | End Cap, Center Handle |
|
- | |||||
| 13 | 935075 | Shim |
|
- | |||||
| 14 | 2152335 | Divider, Bin |
|
- | |||||
| 16 | 1118436 | Insert, Handle (black) |
|
- | |||||
| 16 | 1119367 | Insert, Handle (white) |
|
- | |||||
| 16 | 1119369 | Insert, Handle (almond) |
|
- | |||||
| 17 | 1129278 | Panel, Interior Door |
|
- | |||||
| 18 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 19 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 20 | 4318165 | Door Closer, Upper Cam (black) (Replaces: 2155312) |
|
Immediately | $ 27.36 | ||||
| 20 | 4318165 | Door Closer, Upper Cam (natural) (Replaces: 2155313) |
|
Immediately | $ 27.36 | ||||
| 22 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 23 | 2155332 | Bracket, Door Stop (chrome) |
|
- | |||||
| 23 | 2155334 | Bracket, Door Stop (black) |
|
- | |||||
| 26 | 2155335 | Tap, Plate |
|
- | |||||
| 27 | 1119360 | Retainer, Insert (bottom) |
|
- | |||||
| 28 | 1119366 | Retainer, Insert |
|
- | |||||
| 29 | 2156220 | End Cap (2) |
|
- | |||||
| 30 | 489075 | Screw |
|
- | |||||
| 33 | 1118048 | Pin Plate (6) |
|
- | |||||
| 34 | 1116986 | Pin Plate (8) |
|
$ 12.10 | |||||
| 35 | 1124847 | Shelf Bin (2) |
|
- | |||||
| 36 | 489022 | Screw |
|
- | |||||
| 37 | 1115379 | Door Dike, Hinge Side |
|
- | |||||
| 38 | 1119055 | Door Dike, Handle Side |
|
- | |||||
| 39 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 40 | 1118301 | Gasket Retainer, Top & Bottom |
|
- |
