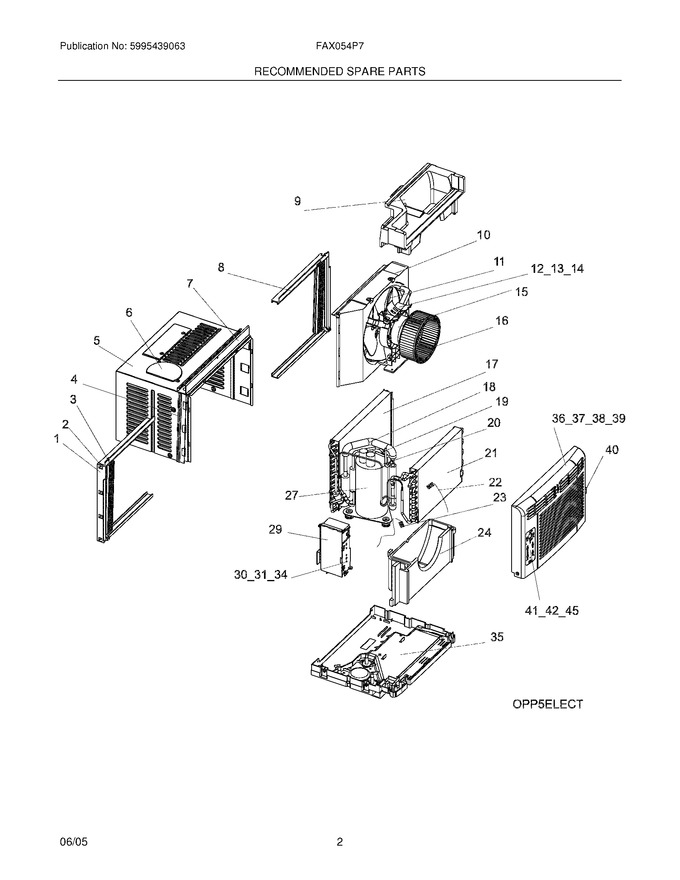

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304448319 | Frame,shutter ,lh ,extension |
|
- | |||||
| 2 | 5304448320 | Retainer,shutter Lock |
|
- | |||||
| 3 | 5304448321 | Shutter,accordion Panel |
|
- | |||||
| 4 | 5304448322 | Retainer,shutter Mount ,cabinet Sides |
|
- | |||||
| 5 | 5304448323 | Cabinet,wrapper/sleeve |
|
- | |||||
| 6 | 5304448324 | Cover,cabinet ,top |
|
- | |||||
| 7 | 5304448325 | Rail,shutter Track ,top |
|
- | |||||
| 8 | 5304448326 | Frame,shutter ,rh ,extension |
|
$ 41.45 | |||||
| 9 | 5304448327 | Scroll,blower Housing ,top |
|
- | |||||
| 13 | 5304448331 | Box,capacitor |
|
- | |||||
| 14 | 5304448332 | Cover,capacitor |
|
- | |||||
| 24 | 5304448339 | Scroll,blower Housing ,bottom |
|
- | |||||
| 29 | 5304448340 | Cover,control Box |
|
- | |||||
| 30 | 5304448371 | Control Box |
|
- | |||||
| 35 | 5304448343 | Base,unit Chassis |
|
- | |||||
| 36 | 5304448344 | Frame,front Assembly |
|
- | |||||
| 37 | 5304448345 | Louvres,vertical |
|
- | |||||
| 38 | 5304448346 | Wheel,louver Adjust |
|
- | |||||
| 39 | 5304448347 | Clamp,wheel Adjust |
|
- | |||||
| 40 | 5304448348 | Filter,air |
|
$ 30.45 | |||||
| 41 | 5304448372 | Control Box |
|
- | |||||
| 42 | 5304448373 | Display Board |
|
- | |||||
| 45 | 5304448374 | Panel,control Display ,overlay |
|
- | |||||
| 23No. | 5304436542 | Sensor,evap Temp ,defrost |
|
$ 44.31 | |||||
| F10 | 5304448328 | Shroud,fan Housing |
|
- | |||||
| F11 | 5304448329 | Fan Blade |
|
- | |||||
| F12 | 5304448330 | Capacitor |
|
- | |||||
| F15 | 5304448355 | Motor,fan |
|
- | |||||
| F16 | 5304446350 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F17 | 5304448334 | Condenser |
|
- | |||||
| F18 | 5304448335 | Suction Tube |
|
- | |||||
| F19 | 5304448336 | Discharge Tube |
|
- | |||||
| F20 | 5304448337 | Capillary Tube |
|
- | |||||
| F21 | 5304448338 | Evaporator |
|
$ 224.62 | |||||
| F22 | 5304436543 | Sensor,ambient Temp |
|
$ 15.38 | |||||
| F27 | 5304446358 | Compressor Assy,w/overload ,grommets |
|
- | |||||
| F31 | 5304436531 | Pc Board,control/power |
|
$ 85.52 | |||||
| F34 | 5304448342 | Power Cord,lcdi ,with Test/reset |
|
- | |||||
| NI | 5304436595 | Remote Control,transmitter |
|
$ 201.08 | |||||
| NI | 5304448354 | Kit,mtg Hardware,installation , |
|
- | |||||
| NI | 5304448375 | Front Assembly,complete Panel , |
|
- |
