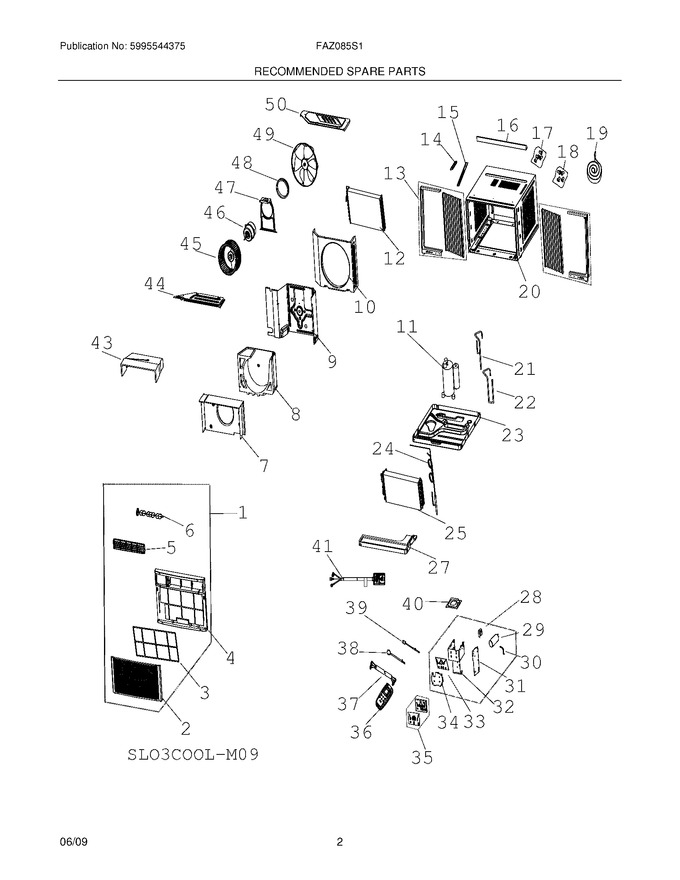

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304471241 | Panel,front Grille ,tilt-out |
|
$ 36.59 | |||||
| 4 | 5304471243 | Frame,front Assembly |
|
- | |||||
| 7 | 5304471246 | Scroll,blower Housing ,front |
|
- | |||||
| 8 | 5304471247 | Scroll,blower Housing ,rear |
|
- | |||||
| 9 | 5304471248 | Bulkhead,partition ,front |
|
- | |||||
| 10 | 5304471249 | Bulkhead,partition ,rear |
|
- | |||||
| 13 | 5304471252 | Window Filler Kit,slider Panels |
|
- | |||||
| 14 | 5304471253 | Brace,bulkhead ,small ,connector |
|
- | |||||
| 15 | 5304471254 | Brace,bulkhead ,large ,connector |
|
- | |||||
| 16 | 5304471255 | Rail,shutter Track ,top |
|
- | |||||
| 17 | 5304471256 | Screw Kit,top Rail Mount |
|
- | |||||
| 18 | 5304471257 | Hardware Kit,installation |
|
- | |||||
| 19 | 5304471258 | Seal Kit,window ,foam Strips |
|
- | |||||
| 20 | 5304471259 | Cabinet,wrapper/sleeve |
|
- | |||||
| 23 | 5304471262 | Base,unit Chassis |
|
- | |||||
| 27 | 5304471265 | Tray,drip Pan |
|
- | |||||
| 30 | 5304471267 | Strap,capacitor Clamp |
|
- | |||||
| 32 | 5304471269 | Control Box |
|
- | |||||
| 34 | 5304471271 | Cover,display Board |
|
- | |||||
| 40 | 5304471277 | Cover,control Box |
|
- | |||||
| 43 | 5304471281 | Cover,scroll ,top |
|
- | |||||
| 44 | 5304471282 | Cover,blower ,front |
|
- | |||||
| 47 | 5304471285 | Bracket,support ,fan Motor |
|
- | |||||
| 48 | 5304471286 | Washer,motor Mount ,anti-vibe |
|
- | |||||
| 50 | 5304471288 | Cover,condenser/fan ,rear |
|
- | |||||
| F1 | 5304471240 | Front Assembly,complete Panel |
|
$ 190.38 | |||||
| F11 | 5304471250 | Compressor |
|
- | |||||
| F12 | 5304471251 | Condenser |
|
- | |||||
| F21 | 5304471260 | Tube,suction |
|
- | |||||
| F22 | 5304471261 | Tube,discharge |
|
- | |||||
| F24 | 5304471263 | Tube,capillary |
|
- | |||||
| F25 | 5304471264 | Evaporator |
|
- | |||||
| F28 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F29 | 5304471266 | Capacitor |
|
- | |||||
| F3 | 5304471242 | Filter,air |
|
- | |||||
| F31 | 5304471268 | Pc Board,control ,main |
|
- | |||||
| F33 | 5304471270 | Pc Board,display/input |
|
- | |||||
| F35 | 5304471272 | Control Panel,with Overlay |
|
- | |||||
| F36 | 5304471273 | Remote Control,transmitter |
|
- | |||||
| F37 | 5304471274 | Wiring Harness,compressor |
|
- | |||||
| F38 | 5304521225 | Thermistor,evap Sensor ,defrost (Replaces: 5304471275) |
|
- | |||||
| F39 | 5304471276 | Thermistor,temp Sensor ,indoor |
|
$ 33.88 | |||||
| F41 | 5304471278 | Power Cord,electric ,lcdi |
|
- | |||||
| F45 | 5304471283 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F46 | 5304471284 | Motor,fan |
|
- | |||||
| F49 | 5304517031 | Fan Blade (Replaces: 5304471287) |
|
- | |||||
| F5 | 5304471244 | Louver,horizontal |
|
- | |||||
| F6 | 5304471245 | Louver,vertical |
|
- |
