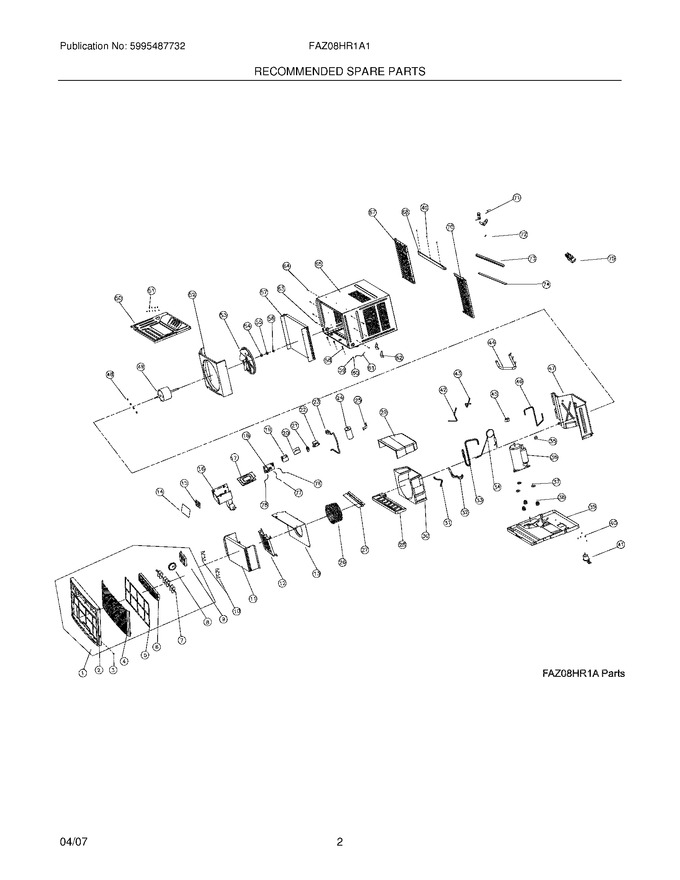

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304459924 | Panel,frame ,front |
|
- | |||||
| 3 | 5304459925 | Screw,self-tapping |
|
- | |||||
| 4 | 5304459926 | Panel,front Grille ,tilt-out |
|
- | |||||
| 8 | 5304459930 | Knob,auger Wheel ,louver |
|
- | |||||
| 9 | 5304459931 | Control Panel,display Console |
|
- | |||||
| 10 | 5304459932 | Clip,sensor Support |
|
- | |||||
| 14 | 5304459936 | Overlay,control Display |
|
- | |||||
| 16 | 5304459998 | Control Box |
|
- | |||||
| 17 | 5304459939 | Cover,control Box |
|
- | |||||
| 25 | 5304459944 | Strap,capacitor Clamp |
|
- | |||||
| 28 | 5304459947 | Tray,drip Pan ,foam |
|
- | |||||
| 29 | 5304459952 | Scroll,blower Housing ,top |
|
- | |||||
| 30 | 5304459953 | Scroll,blower Housing ,bottom |
|
- | |||||
| 37 | 5304460009 | Nut,m6 ,with Washer |
|
- | |||||
| 38 | 5304460010 | Grommet,compressor ,rubber |
|
- | |||||
| 39 | 5304460011 | Base,unit Chassis |
|
- | |||||
| 40 | 5304459961 | Screw,self-tapping ,4.2 X 9.5 |
|
- | |||||
| 45 | 5304460015 | Cover,terminal ,compressor |
|
- | |||||
| 47 | 5304459968 | Bulkhead,air System |
|
- | |||||
| 48 | 5304459969 | Nut,m4 |
|
- | |||||
| 50 | 5304459971 | Cover,condenser/fan ,top |
|
- | |||||
| 51 | 5304459972 | Screw,4.2 X 9.5 |
|
- | |||||
| 52 | 5304459973 | Shroud,condenser Fan |
|
- | |||||
| 54 | 5304459975 | Washer,no.6 |
|
- | |||||
| 55 | 5304459976 | Washer,no.6 |
|
- | |||||
| 56 | 5304459977 | Nut,m6 |
|
- | |||||
| 58 | 5304459979 | Screw,4.3 X 13ta |
|
- | |||||
| 59 | 5304459980 | Washer,no.4 |
|
- | |||||
| 60 | 5304459981 | Screw,m4 X 6 |
|
- | |||||
| 61 | 5304459982 | Wire,connector ,ground |
|
- | |||||
| 62 | 5304459983 | Bracket,installation ,locking |
|
- | |||||
| 63 | 5304459984 | Screw,self-tapping ,4.2 X 9.5 |
|
- | |||||
| 64 | 5304459985 | Screw,self-tapping ,4.2 X 6.5 |
|
- | |||||
| 65 | 5304459986 | Cabinet,wrapper/sleeve |
|
- | |||||
| 67 | 5304459987 | Shutter,window ,lh ,slider Panel |
|
- | |||||
| 68 | 5304459988 | Rail,shutter Track ,top |
|
- | |||||
| 70 | 5304459989 | Shutter,window ,rh ,slider Panel |
|
- | |||||
| 71 | 5304459992 | Bracket,angle ,window Lock |
|
- | |||||
| 72 | 5304459991 | Screw,4 X 20 |
|
- | |||||
| 73 | 5304459993 | Seal,strip 1 ,upper |
|
- | |||||
| 74 | 5304459994 | Seal,strip 2 ,lower |
|
- | |||||
| 76 | 5304459876 | Thermistor,temp Sensor ,ambient |
|
- | |||||
| F1 | 5304459923 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304459996 | Evaporator |
|
- | |||||
| F12 | 5304459997 | Heater,electric |
|
- | |||||
| F13 | 5304459935 | Shield,heat Insulation ,front |
|
- | |||||
| F15 | 5304459937 | Pc Board,display/input |
|
- | |||||
| F18 | 5304460000 | Pc Board,control ,main |
|
- | |||||
| F19 | 5304460001 | Relay,ac Contactor |
|
- | |||||
| F20 | 5304459894 | Capacitor,motor |
|
- | |||||
| F21 | 5304459674 | Terminal,electric ,board 2-8 |
|
- | |||||
| F22 | 5304459195 | Transformer |
|
- | |||||
| F23 | 5304460002 | Power Cord,electric ,lcdi |
|
- | |||||
| F24 | 5304460003 | Capacitor,compressor |
|
- | |||||
| F26 | 5304459945 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F27 | 5304459946 | Shield,heat ,drip Tray |
|
- | |||||
| F31 | 5304459954 | Tube,outlet ,condenser |
|
- | |||||
| F32 | 5304459955 | Tube,inlet ,condenser |
|
- | |||||
| F33 | 5304460005 | Tube,suction |
|
- | |||||
| F34 | 5304460006 | Tube,capillary |
|
- | |||||
| F35 | 5304460007 | Overload Protector,compressor |
|
- | |||||
| F36 | 5304460008 | Compressor |
|
- | |||||
| F41 | 5304459477 | Valve,drain |
|
- | |||||
| F42 | 5304460012 | Tube,inlet 1 ,evaporator |
|
- | |||||
| F43 | 5304460013 | Tube,inlet 2 ,evaporator |
|
- | |||||
| F44 | 5304460014 | Tube,outlet ,evaporator |
|
- | |||||
| F46 | 5304460016 | Tube,discharge |
|
- | |||||
| F49 | 5304460017 | Motor,fan |
|
- | |||||
| F5 | 5304459927 | Filter,air |
|
- | |||||
| F53 | 5304459974 | Fan Blade,propeller |
|
- | |||||
| F57 | 5304460018 | Condenser |
|
- | |||||
| F6 | 5304459928 | Louver,horizontal |
|
- | |||||
| F7 | 5304459929 | Louver,vertical |
|
- | |||||
| F75 | 5304459995 | Remote Control,transmitter |
|
- | |||||
| F77 | 5304460537 | Thermistor,evap Sensor ,defrost |
|
$ 57.17 | |||||
| F78 | 5304459792 | Thermistor,temp Sensor ,ambient |
|
$ 64.16 |
