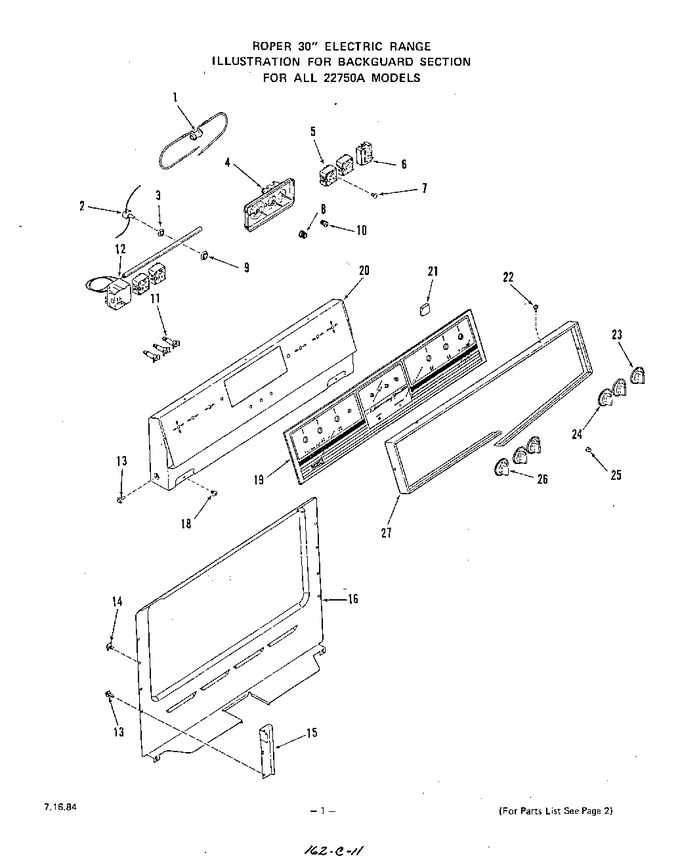

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327623		Wire Lead W/resistor		Appelez-nous	-
2	307573		Push Switch - Oven Light		Appelez-nous	-
3	236129		Pal Nut 3/8-27 (2 Req)		Appelez-nous	-
4	322305		Clock W/1 Hr. Timer		Appelez-nous	-
5	5500-200		Infinite Switch (4 Req)   (Replaces: 320944)			Immediately	$ 60.94
6	327163		Selector Switch		Appelez-nous	-
7	78565		Screw 8-32x3/16`` (2 Ea. For 5,6 & 12)		Appelez-nous	-
8	294810		Knob-clock (1 Req)		Appelez-nous	-
9	109883		Nut-trim 3/8-27		Appelez-nous	-
10	109225		Knob-clock (start & Stop Time) (2)		Appelez-nous	-
11	323228		Indicator Light (3 Req)		Appelez-nous	-
12	324686		Thermostat		Appelez-nous	-
13	327320		Screw 10-16x7/16``		Appelez-nous	-
14	70588		Trim Clip		Appelez-nous	-
15	326644		Left		Appelez-nous	-
15	326643		Right		Appelez-nous	-
16	326122		Wire Cover-backguard		Appelez-nous	-
18	326974		Screw 10abx1/2``		Appelez-nous	-
19	328885		Top Lamp Glass		Appelez-nous	-
20	328995		Almond		Appelez-nous	-
20	328994		White		Appelez-nous	-
21	322302		Spacer-top Lamp Glass (2 Req)		Appelez-nous	-
22	327621		Screw 6-20x3/8``		Appelez-nous	-
23	328894		Knob-selector Switch		Appelez-nous	-
24	328893		Knob-infinite Switch (4 Req)		Appelez-nous	-
25	325677		Lens-indicator Light (3 Req)		Appelez-nous	-
26	328897		Knob-thermostat		Appelez-nous	-
27	308007		Bezel-backguard		Appelez-nous	-
