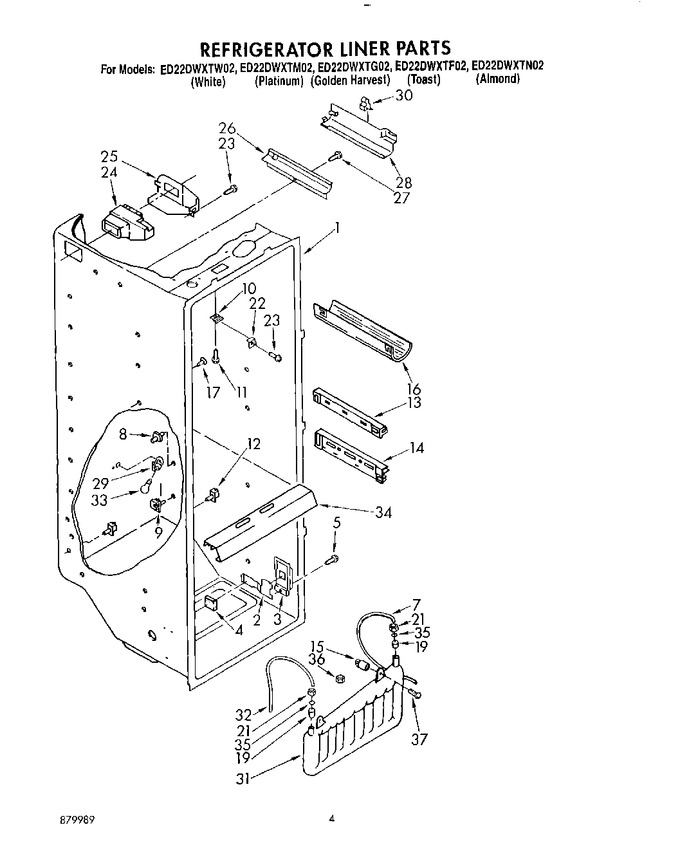

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
5	486214		Screw 8-15 X 1/2		Appelez-nous	-
7	W10823511		Tube, Water   (Replaces: 1119096)			Immediately	$ 32.41
8	4388538		Stud, Rear (6)   (Replaces: 1110718)			Immediately	$ 32.85
9	1115290		Stud (4)				$ 7.61
10	1110706		Clip (2)		Appelez-nous	-
11	WP489478		Screw (2)   (Replaces: 489242)				$ 8.18
12	4388538		Stud (2)   (Replaces: 1115382)			Immediately	$ 32.85
13	1114632		Track, Shelf (right Side (2))				$ 23.36
13	1114633		Track, Shelf (left Side (2))				$ 23.63
14	1115264		Track, Shelf (right Side)				$ 21.37
14	1115265		Track, Shelf (left Side)				$ 25.12
15	1115399		Stud, Spacer (2)		Appelez-nous	-
16	1115261		Wine Rack		Appelez-nous	-
17	WP1114631		Support, Stud (28)   (Replaces: 1114631)				$ 10.83
19	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
21	488795		Nut, Compression		Appelez-nous	-
22	1110705		Bracket Retainer		Appelez-nous	-
23	W11624204		Screw (2) 8 X 1/2   (Replaces: 486194)				$ 14.72
24	WPW10151374		Air Diffuser Assembly   (Replaces: 1121327)			Immediately	$ 104.77
25	2152019		Air Diffuser Cover   (Replaces: 1118430)				$ 90.33
26	1114658		Cover, Conduit		Appelez-nous	-
27	WP488163		Screw, 8 X 3/4   (Replaces: 488248)				$ 7.92
28	1114659		Cover, Wiring		Appelez-nous	-
29	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
31	WP2256126		Reservoir   (Replaces: 839912)				$ 177.29
32	W10823511		Tube   (Replaces: 840860)			Immediately	$ 32.41
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1115330		Light Lens		Appelez-nous	-
35	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 295.49
36	1108005		Nut, Compression		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-
