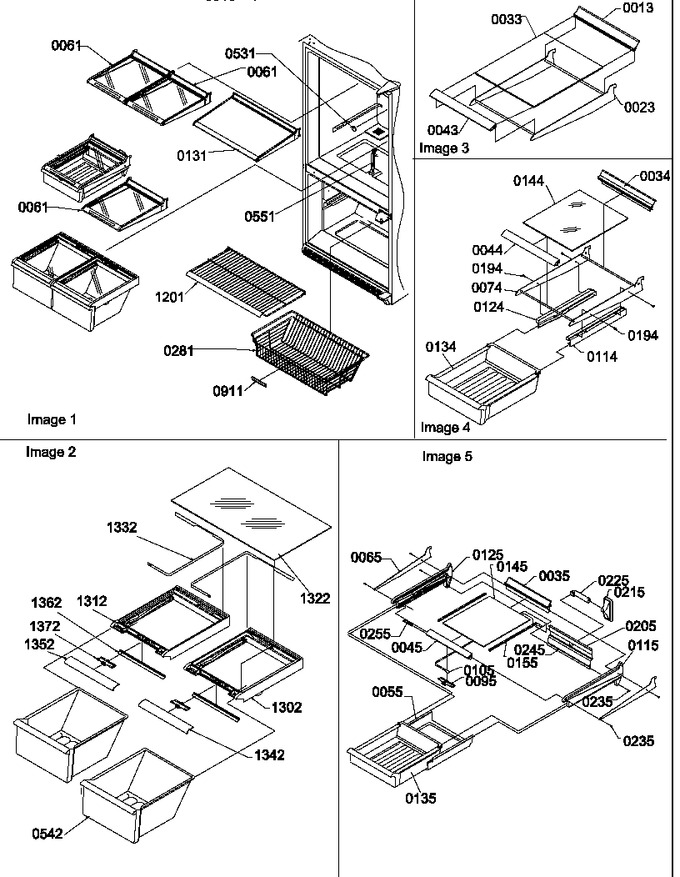

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10459806		Extr, Rear Shelf		Appelez-nous	-
13	10946008		Extr, Rear Shelf		Appelez-nous	-
23	10460110		Shelf, Glass Frame		Appelez-nous	-
23	10460108		Shelf, Glass Frame				$ 29.98
33	10370099		Glass, Shelf		Appelez-nous	-
33	Y10370074		Glass, Shelf		Appelez-nous	-
34	10946008		Extr, Rear Shelf		Appelez-nous	-
43	10459928		Extr, Front Shelf		Appelez-nous	-
44	10459927		Extr, Front Shelf		Appelez-nous	-
61	10480430		Assy, Glass Shelf		Appelez-nous	-
74	10460107		Frame, Shelf		Appelez-nous	-
114	12027201		Glide, R Deli				$ 64.15
124	12027101		Glide, L Deli		Appelez-nous	-
131	10480412		Assy, Glass Shelf		Appelez-nous	-
134	10417013		Pan,meatkeeper		Appelez-nous	-
144	10370099		Glass, Shelf		Appelez-nous	-
194	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
281	10513401		Basket, Freezer		Appelez-nous	-
542	10432008		Pan,crisper		Appelez-nous	-
551	10461901		Post, Crisper Support			Immediately	$ 25.85
911	10508506		Handle, Basket/shelf		Appelez-nous	-
1201	12288501		Shelf, Wire Frz		Appelez-nous	-
1302	10485901		Frame, Crisper (r)		Appelez-nous	-
1312	10485902		Frame, Crisper (l)		Appelez-nous	-
1322	10370035		Glass, Shelf				$ 101.12
1332	10514002		Band, Crisper Control		Appelez-nous	-
1342	10530318		Trim-crsp Front		Appelez-nous	-
1352	10530319		Trim- Crsp Front		Appelez-nous	-
1362	10530204		Seal, Crisper				$ 39.10
1372	10797501		Slide, Crisper		Appelez-nous	-
