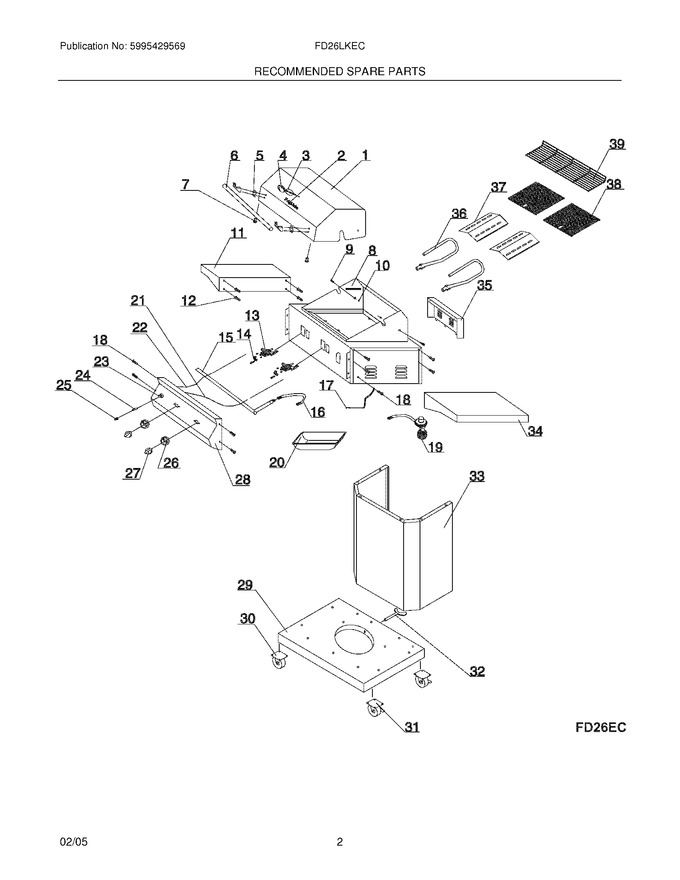

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304444081 | Lid,stainless |
|
- | |||||
| 2 | 5304444082 | Nameplate,logo ,frigidaire |
|
- | |||||
| 3 | 5304444083 | Washer,heat ,temp. Gauge |
|
- | |||||
| 4 | 5304444084 | Gauge,temperature |
|
$ 41.84 | |||||
| 5 | 5304444085 | Washer,heat ,handle |
|
- | |||||
| 6 | 5304444086 | Handle Assembly,lid ,stainless |
|
- | |||||
| 7 | 5304444087 | Washer,heat ,rubber |
|
- | |||||
| 8 | 5304444088 | Bowel Assembly,stainless |
|
- | |||||
| 9 | 5304444089 | Screw,lid ,9.5 X 29 |
|
- | |||||
| 10 | 5304444090 | Nut,lid ,1/4 - 20 |
|
- | |||||
| 11 | 5304444091 | Shelf,side ,stainless ,lh |
|
- | |||||
| 12 | 5304444092 | Screw,oblate ,1/4 - 20 X 12 ,complex Slot |
|
- | |||||
| 13 | 5304444093 | Valve,lp Gas ,main Burner |
|
- | |||||
| 14 | 5304444094 | Bracket,retainer ,manifold |
|
- | |||||
| 15 | 5304444095 | Manifold,pipe |
|
- | |||||
| 16 | 5304444096 | Tubing,gas |
|
- | |||||
| 17 | 5304444097 | Rod,lighting |
|
- | |||||
| 18 | 5304444207 | Screw,oblate ,5/32 - 32 X 12 |
|
- | |||||
| 19 | 5304444191 | Regulator,pressure ,lp Gas |
|
$ 167.32 | |||||
| 20 | 5304444192 | Tray,drainage ,for Grease |
|
- | |||||
| 21 | 5304444208 | Lead,800mm |
|
$ 43.58 | |||||
| 22 | 5304444209 | Lead,400mm |
|
$ 30.19 | |||||
| 23 | 5304444210 | Seat,ignitor ,1t02 |
|
- | |||||
| 24 | 5304444211 | Battery,aa ,5no. |
|
- | |||||
| 25 | 5304444212 | Button,ignitor ,black ,1t102 |
|
- | |||||
| 26 | 5304444213 | Seat,control Knob |
|
- | |||||
| 27 | 5304444214 | Knob,control ,black |
|
$ 55.07 | |||||
| 28 | 5304444215 | Panel,control ,stainless |
|
- | |||||
| 29 | 5304444216 | Panel,bottom ,stainless |
|
- | |||||
| 30 | 5304444217 | Castor,3`` |
|
- | |||||
| 31 | 5304444218 | Castor,3`` ,w/ Brake |
|
- | |||||
| 32 | 5304444219 | Nut,dishing |
|
- | |||||
| 33 | 5304444220 | Wrapper,stainless ,lower |
|
- | |||||
| 34 | 5304444221 | Shelf,side ,stainless ,rh |
|
- | |||||
| 35 | 5304444222 | Baffle,stainless ,rear |
|
- | |||||
| 36 | 5304444223 | Burner,main |
|
$ 117.13 | |||||
| 37 | 5304444224 | Flame Spreader,tamer |
|
$ 131.57 | |||||
| 38 | 5304444225 | Rack,cooking Grid |
|
$ 239.40 | |||||
| 39 | 5304444226 | Rack,warming |
|
- |
