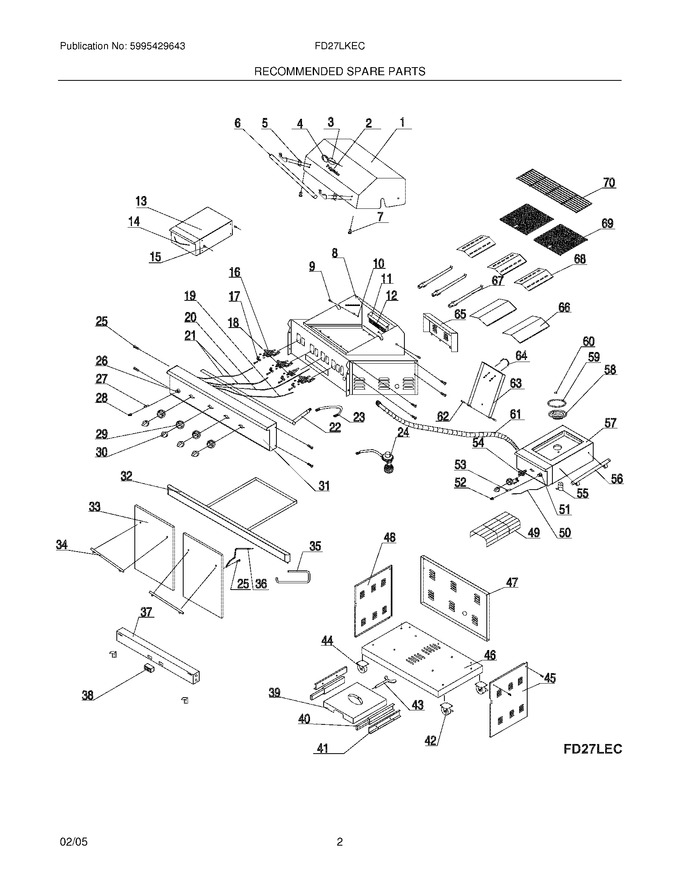

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304444227		Lid,stainless		Appelez-nous	-
2	5304444082		Nameplate,logo ,frigidaire		Appelez-nous	-
3	5304444083		Washer,heat ,temp. Gauge		Appelez-nous	-
4	5304444084		Gauge,temperature				$ 41.84
5	5304444085		Washer,heat ,handle		Appelez-nous	-
6	5304444086		Handle Assembly,lid ,stainless		Appelez-nous	-
7	5304444087		Washer,heat ,rubber		Appelez-nous	-
8	5304444228		Bowel Assembly,stainless		Appelez-nous	-
9	5304444089		Screw,lid ,9.5 X 29		Appelez-nous	-
10	5304444090		Nut,lid ,1/4 - 20		Appelez-nous	-
11	5304444229		Collector,gas		Appelez-nous	-
12	5304444230		Burner,rear		Appelez-nous	-
13	5304444231		Drawer Assembly,side ,stainless		Appelez-nous	-
14	5304444394		Handle,drawer ,stainless ,side		Appelez-nous	-
15	5304444092		Screw,oblate ,1/4 - 20 X 12 ,complex Slot		Appelez-nous	-
16	5304444233		Valve,gas ,main Burner ,lp				$ 96.34
17	5304444094		Bracket,retainer ,manifold		Appelez-nous	-
18	5304444234		Valve,gas ,rear Burner				$ 90.27
19	5304444208		Lead,800mm				$ 43.58
20	5304444235		Lead,900mm				$ 40.85
21	5304444209		Lead,400mm				$ 30.19
22	5304444236		Manifold,pipe				$ 57.23
23	5304444237		Tubing,gas		Appelez-nous	-
24	5304444191		Regulator,pressure ,lp Gas				$ 167.32
25	5304444207		Screw,oblate ,5/32 - 32 X 12		Appelez-nous	-
26	5304444238		Seat,ignitor ,1t04		Appelez-nous	-
27	5304444211		Battery,aa ,5no.		Appelez-nous	-
28	5304444239		Button,ignitor ,black ,1t104		Appelez-nous	-
29	5304444213		Seat,control Knob		Appelez-nous	-
30	5304444214		Knob,control ,black				$ 55.07
31	5304444240		Panel,control ,stainless		Appelez-nous	-
32	5304444241		Tray,drainage ,stainless ,for Grease		Appelez-nous	-
33	5304444242		Door,front ,stainless		Appelez-nous	-
34	5304444243		Handle,door ,stainless		Appelez-nous	-
35	5304444244		Rack,towel ,stainless		Appelez-nous	-
36	5304444245		Rod,lighting				$ 15.37
37	5304444246		Frame,cart ,stainless ,lower		Appelez-nous	-
38	5304444247		Magnet,door		Appelez-nous	-
39	5304444248		Holder,tank		Appelez-nous	-
40	5304444249		Slider Assembly		Appelez-nous	-
41	5304444250		Bracket,slider Assy.		Appelez-nous	-
42	5304444218		Castor,3`` ,w/ Brake		Appelez-nous	-
43	5304444251		Nut,dishing		Appelez-nous	-
44	5304444217		Castor,3``		Appelez-nous	-
45	5304444294		Panel,cart ,stainless ,rh Side		Appelez-nous	-
46	5304444274		Panel,cart ,stainless ,bottom		Appelez-nous	-
47	5304444252		Panel,cart ,stainless ,back		Appelez-nous	-
48	5304444253		Panel,cart ,stainless ,lh Side		Appelez-nous	-
49	5304444254		Rack,cooking Grid ,side Burner				$ 61.01
50	5304444255		Lead,400mm ,side Burner				$ 10.66
51	5304444256		Seat,ignitor ,1t01		Appelez-nous	-
52	5304444257		Button,ignitor ,black ,1t01		Appelez-nous	-
53	5304444258		Battery,7no. , `		Appelez-nous	-
54	5304444259		Valve,gas ,side Burner ,lp				$ 97.60
55	5304444260		Base,orifice ,side Burner				$ 12.08
56	5304444261		Bar,pushing ,stainless ,side		Appelez-nous	-
57	5304444262		Bowel Assembly,stainless ,side Burner		Appelez-nous	-
58	5304444263		Body,stainless ,side Burner		Appelez-nous	-
59	5304444264		Ring,side Burner		Appelez-nous	-
60	5304444232		Head,burner ,side		Appelez-nous	-
61	5304444265		Tubing,gas ,side Burner				$ 40.79
62	5304444266		Screw,stamp ,9.5 X 29		Appelez-nous	-
63	5304444267		Lid,stainless ,side Burner		Appelez-nous	-
64	5304444387		Handle,lid ,stainless ,side Burner				$ 19.90
65	5304444268		Baffle,stainless ,rear		Appelez-nous	-
66	5304444269		Frame,spreader/tamer ,bottom				$ 74.30
67	5304444270		Burner,main				$ 68.36
68	5304444271		Flame Spreader,tamer ,top				$ 86.52
69	5304444272		Rack,cooking Grid				$ 250.74
70	5304444273		Rack,warming				$ 118.23
