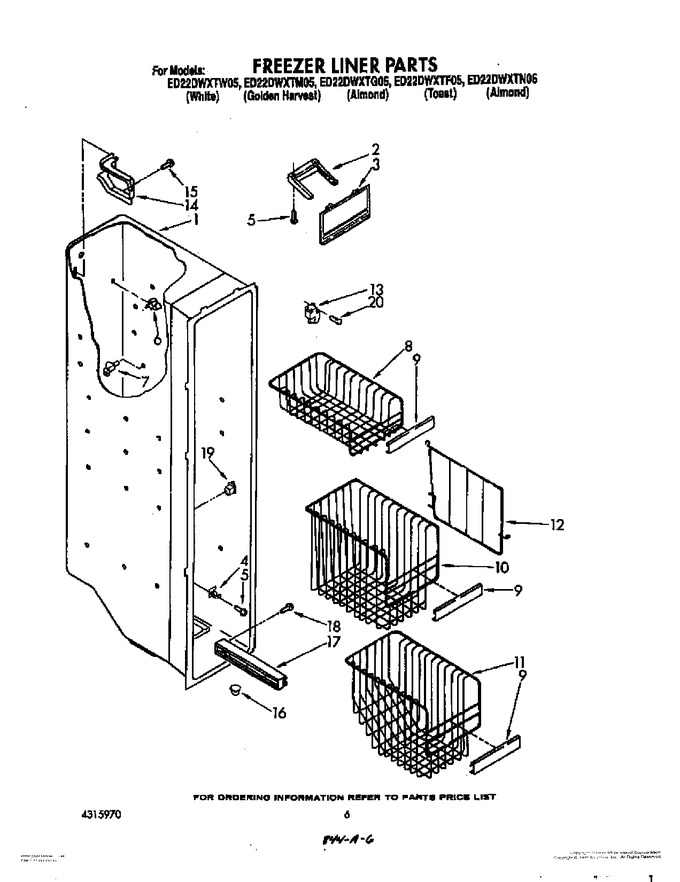

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	1115218		Door, Ice Compartment		Appelez-nous	-
4	1108436		Evaporator, Support		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	1115317		Support, Stud (4)		Appelez-nous	-
8	1114671		Basket (2)		Appelez-nous	-
9	1127151		Trim, Basket		Appelez-nous	-
10	1114673		Basket, Tall		Appelez-nous	-
11	1114675		Basket, Slope		Appelez-nous	-
12	1115253		Rack, Pizza		Appelez-nous	-
13	942842		Terminal Block		Appelez-nous	-
14	1114607		Wiring Cover		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 7.79
16	942768		Fitting, Drain		Appelez-nous	-
17	1114679		Shelf Track (right Side (4))		Appelez-nous	-
17	1114680		Shelf Track (left Side (4))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.06
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
20	WP489478		Screw   (Replaces: 489242)				$ 7.75
