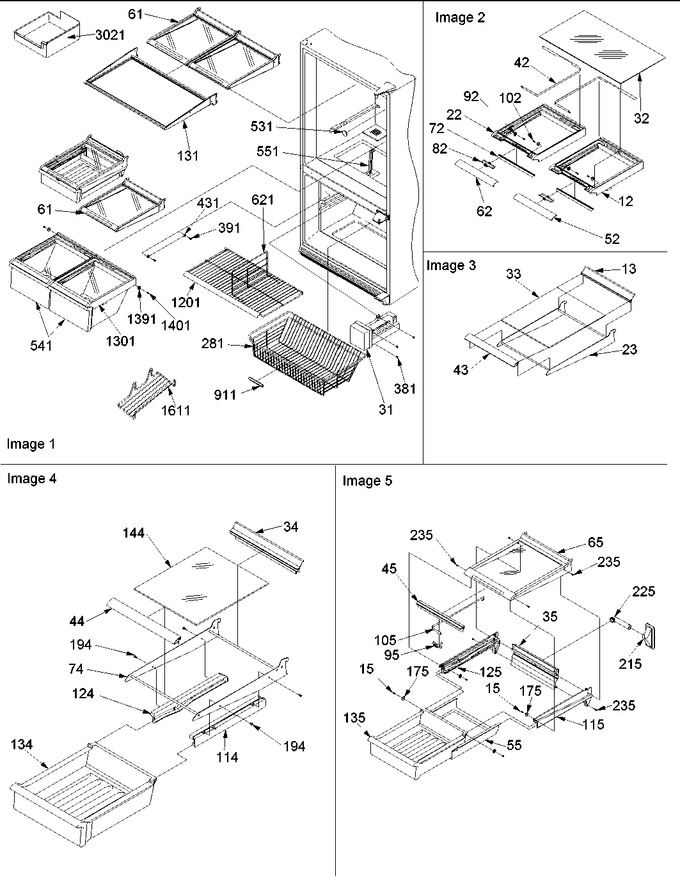

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10485901		Frame, Crisper (r)		Appelez-nous	-
13	10459806		Extr, Rear Shelf		Appelez-nous	-
13	10946008		Extr, Rear Shelf		Appelez-nous	-
22	10485902		Frame, Crisper (l)		Appelez-nous	-
23	10460107		Frame, Shelf		Appelez-nous	-
23	10460108		Shelf, Glass Frame				$ 29.98
32	10370035		Glass, Shelf				$ 101.12
33	Y10370074		Glass, Shelf		Appelez-nous	-
33	10370099		Glass, Shelf		Appelez-nous	-
34	10946008		Extr, Rear Shelf		Appelez-nous	-
42	10514002		Band, Crisper Control		Appelez-nous	-
43	10459928		Extr, Front Shelf		Appelez-nous	-
44	10459927		Extr, Front Shelf		Appelez-nous	-
52	10530318		Trim-crsp Front		Appelez-nous	-
61	10480430Q		Assy, Glass Shelf				$ 114.17
62	10530319		Trim- Crsp Front		Appelez-nous	-
72	10530204		Seal, Crisper				$ 39.10
74	10460107		Frame, Shelf		Appelez-nous	-
82	10797501		Slide, Crisper		Appelez-nous	-
114	12027201		Glide, R Deli				$ 64.15
124	12027101		Glide, L Deli		Appelez-nous	-
131	10480412Q		Assy, Glass Shelf		Appelez-nous	-
134	10417013		Pan,meatkeeper		Appelez-nous	-
144	10370099		Glass, Shelf		Appelez-nous	-
194	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.02
281	12433501		Basket, Freezer		Appelez-nous	-
381	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
541	10432008		Pan,crisper		Appelez-nous	-
551	10461901		Post, Crisper Support			Immediately	$ 24.62
911	10508506		Handle, Basket/shelf		Appelez-nous	-
1201	12459401		Shelf, Frz Wire		Appelez-nous	-
1301	12431807Q		Assy, Crisper		Appelez-nous	-
