Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10183980 Trim-door Shelf Appelez-nous -
2 10183982 Trim- Door Shelf Appelez-nous -
3 10502904 Bucket, Ref Door Appelez-nous -
4 10183111 Retainer, Ref Door (no Decor) Appelez-nous -
5 10416904 Shelf, Ref Door Appelez-nous -
6 10423414 Door,dairy Appelez-nous -
7 WP12550115Q Gasket,ref Dr(white)   (Replaces: 10456809) Special Order $ 176.41

8 10462502 Liner, Refr. Door Appelez-nous -
9 10202001 Clip, Retainer Appelez-nous -
10 10183971 Trim Door Shelf Appelez-nous -
11 M0219730 Screw Special Order $ 7.65


    View Diagram in Separate Window     Print Icon   Print Part List

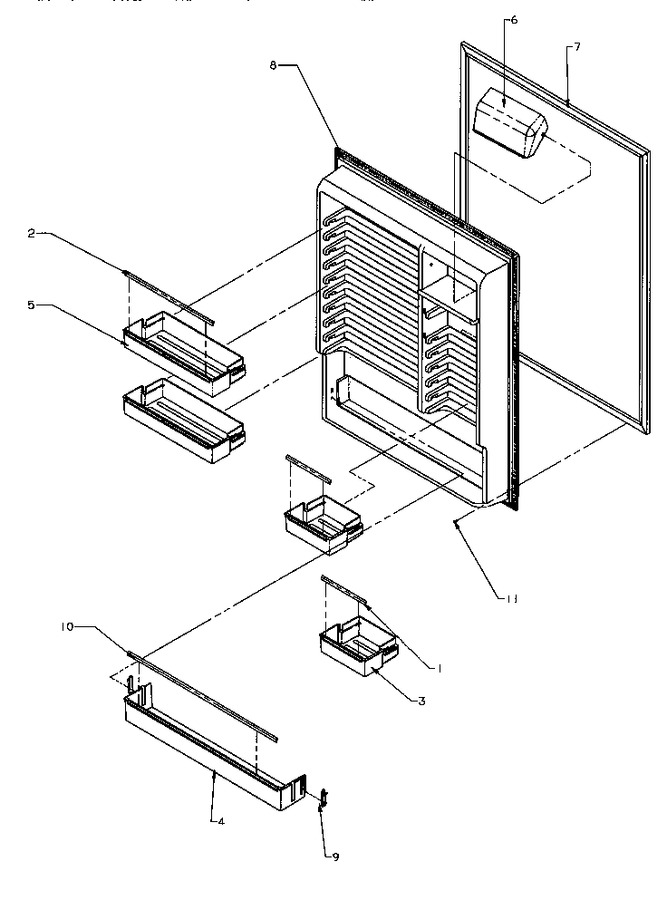

Diagram for BH20S5L (BOM: P1196501W)
