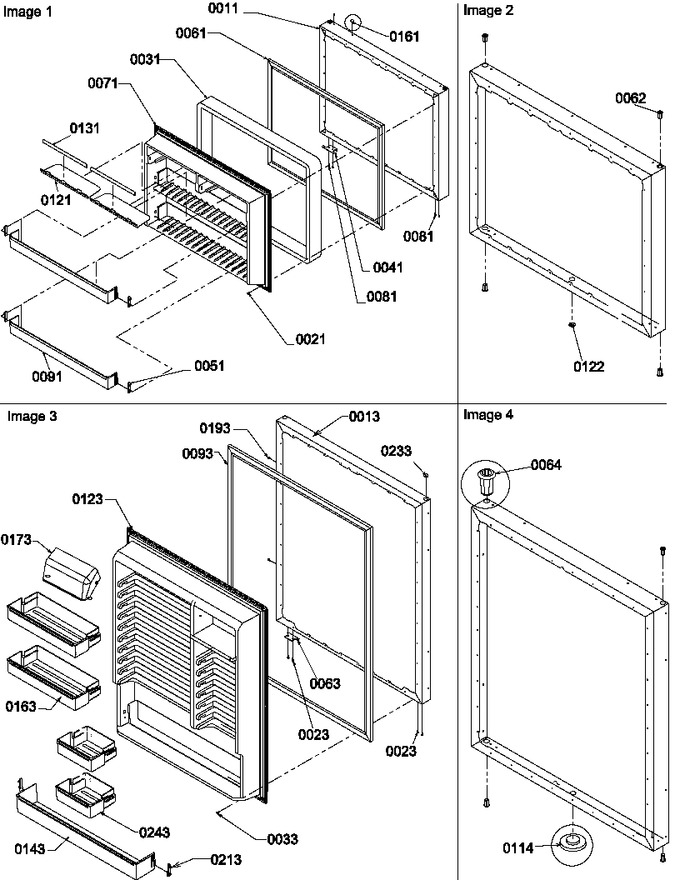

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10537404L		Assy Frz Door Fm		Appelez-nous	-
13	10537205L		Assy Ref Dr Fm		Appelez-nous	-
21	M0219730		Screw				$ 7.65
23	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
31	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
33	M0219730		Screw				$ 7.65
41	10447102		Stop, Door		Appelez-nous	-
51	10202001		Clip, Retainer		Appelez-nous	-
61	WP12550116Q		Gasket,fz Dr(white)   (Replaces: 10456810)			Immediately	$ 122.85
63	10447102		Stop, Door		Appelez-nous	-
71	10462601		Assy, Liner Frz Dr (bm)		Appelez-nous	-
81	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
91	10419006		Retainer, Door		Appelez-nous	-
93	WP12550115Q		Gasket,ref Dr(white)   (Replaces: 10456809)				$ 176.41
121	10513701		Assy, Liner Frz Dr (bm)		Appelez-nous	-
123	10462502		Liner, Refr. Door		Appelez-nous	-
131	10304107		Extrs, Shelf		Appelez-nous	-
143	10183113		Retainer, Ref Door (no Decor)		Appelez-nous	-
161	M0310730		Plug Button (almond)		Appelez-nous	-
163	10416905		Shelf, Ref Door		Appelez-nous	-
173	10423416		Door,dairy		Appelez-nous	-
193	M0310730		Plug Button (almond)		Appelez-nous	-
213	10202001		Clip, Retainer		Appelez-nous	-
233	10686402		Plug, Button		Appelez-nous	-
243	10502907		Bucket, Ref Door		Appelez-nous	-
