SELECT A DIAGRAM

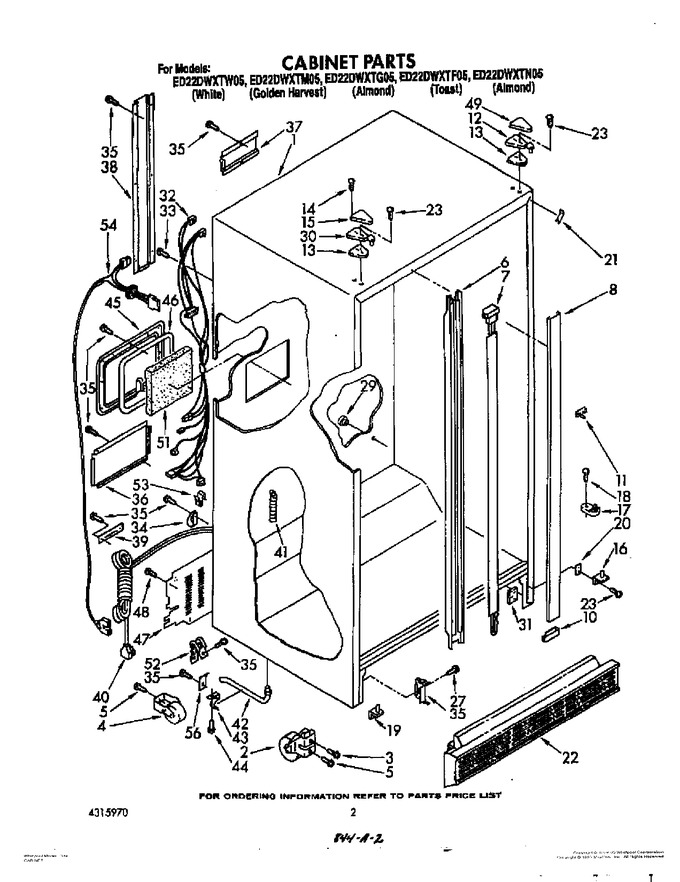

02 - Cabinet


03 - Refrigerator Liner


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Freezer Interior


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Air Flow


12 - Control


13 - Icemaker, Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981128		Front Roller (2)		Appelez-nous	-
3	489333		Screw		Appelez-nous	-
4	2147324		Roller, Rear (2)		Appelez-nous	-
5	488454		Screw, 1/4-28 X 1/2 (6)		Appelez-nous	-
6	1118354		Mullion Rail		Appelez-nous	-
7	1106997		Heater, Mullion		Appelez-nous	-
8	1123969		Front Mullion Rail (almond)		Appelez-nous	-
8	1123971		Front Mullion Rail (platinum)		Appelez-nous	-
8	1123970		Front Mullion Rail (toast)		Appelez-nous	-
8	1123968		Front Mullion Rail (golden Harvest)		Appelez-nous	-
8	1123966		Front Mullion Rail (white)		Appelez-nous	-
10	1118361		Filler Bottom Mullion (white)		Appelez-nous	-
10	1118363		Filler Bottom Mullion (golden Harvest)		Appelez-nous	-
10	1118362		Filler Bottom Mullion (almond)		Appelez-nous	-
10	1118365		Filler Bottom Mullion (platinum)		Appelez-nous	-
10	1118364		Filler Bottom Mullion (toast)		Appelez-nous	-
11	1110607		Clip, Ground		Appelez-nous	-
12	1123514		Hinge, Top		Appelez-nous	-
13	1123515		Shim, Hinge Top				$ 6.58
14	489284		Screw, Bind		Appelez-nous	-
15	989885		Hinge Cover (golden Harvest)		Appelez-nous	-
15	989887		Hinge Cover (almond)		Appelez-nous	-
15	1100382		Hinge Cover (platinum)		Appelez-nous	-
15	1100381		Hinge Cover (toast)		Appelez-nous	-
15	987191		Hinge Cover (white)		Appelez-nous	-
16	1115900		Hinge, Bottom R.h.		Appelez-nous	-
17	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.43
18	489296		Screw (2)		Appelez-nous	-
19	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
21	1110712		Filler, Wrapper (platinum)		Appelez-nous	-
21	1110711		Filler, Wrapper (toast)		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
21	1110710		Filler, Wrapper (golden Harvest)		Appelez-nous	-
22	1129061		Grille		Appelez-nous	-
23	489297		Screw (repair)		Appelez-nous	-
23	489327		Screw		Appelez-nous	-
27	WP2155013		Clip, Grille Retainer (2)   (Replaces: 1114789)			Immediately	$ 7.72
29	1129178		Grommet		Appelez-nous	-
30	1123510		Hinge, Top (l.h.)		Appelez-nous	-
31	2147310		Tap Plate (2)		Appelez-nous	-
32	1129190		Cabinet Harness		Appelez-nous	-
33	WP250830		Screw, Ground   (Replaces: 489048)				$ 7.95
34	937357		Clamp		Appelez-nous	-
35	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
35	WP489478		Screw   (Replaces: 489242)				$ 7.75
36	1108442		Cover, Wiring		Appelez-nous	-
37	1108440		Wiring Shield, Short		Appelez-nous	-
38	1108441		Wiring Shield, Long		Appelez-nous	-
39	1105607		Tube Clamp (2)		Appelez-nous	-
40	937360		Cord, Service		Appelez-nous	-
41	842258		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
44	488978		Screw		Appelez-nous	-
45	1108443		Cover, Plug		Appelez-nous	-
46	1115321		Sealing Gasket		Appelez-nous	-
47	2147329		Cover, Unit		Appelez-nous	-
48	WPW10141645		Screw, 8 X 1/2 (6)   (Replaces: 489084)				$ 7.67
49	1119787		Hinge Cover (white)				$ 22.50
49	1119789		Hinge Cover (almond)		Appelez-nous	-
49	1119788		Hinge Cover (golden Harvest)		Appelez-nous	-
49	1119790		Hinge Cover (toast)		Appelez-nous	-
49	1119791		Hinge Cover (platinum)		Appelez-nous	-
51	1118236		Insulation		Appelez-nous	-
52	549193		Clamp-service Cord				$ 13.39
53	548745		Clip, Wire		Appelez-nous	-
54	WP2187501		Wiring Assembly (icemaker)   (Replaces: 1129189)				$ 113.76
56	836472		Clamp, Water Line (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
