02 - Power Lock
03 - Backguard
04 - Main Top
05 - Canning Element , Griddle
06 - Body
07 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

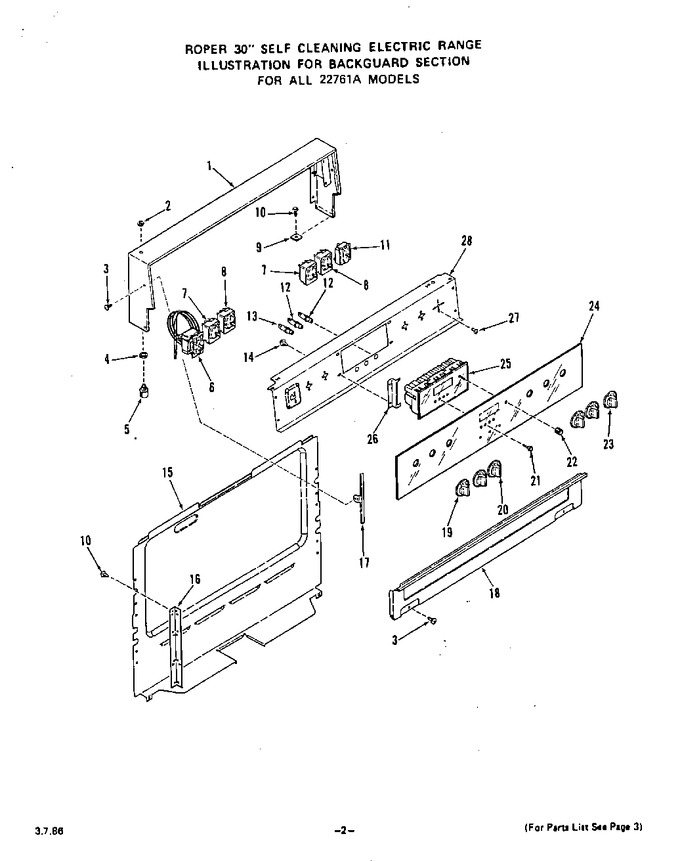

| 1 | 333245 | Frame-backguard |
|
- | |||||
| 2 | 87403 | Knurled Nut (2 Req) |
|
- | |||||
| 3 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 4 | 236129 | Pal Nut 3/8-27 (2 Req) |
|
- | |||||
| 5 | 283523 | Push Switch-oven Light |
|
- | |||||
| 6 | 329907 | Oven Thermostat |
|
- | |||||
| 7 | 324608 | Infinite Switch-rt. Rear Or Lt Front |
|
- | |||||
| 8 | 324609 | Infinite Switch-rt. Front Or Lt. Rear |
|
- | |||||
| 9 | 323523 | Plate (rt. Or Lt.) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 329905 | Selector Switch |
|
- | |||||
| 12 | 296317 | Indicator Light-surface Or Lock |
|
- | |||||
| 13 | 329931 | Indicator Light-oven |
|
- | |||||
| 14 | 326974 | Screw 10ab |
|
- | |||||
| 15 | 326085 | Wire Cover-backguard |
|
- | |||||
| 16 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 17 | 316351 | End Trim-top Lamp Glass (lt. Or Rt.) |
|
- | |||||
| 18 | 296585 | Backguard Front-bottom |
|
- | |||||
| 19 | 329933 | Knob-thermostat |
|
- | |||||
| 20 | 325472 | Knob-infinite Switch (4 Req) |
|
- | |||||
| 21 | 331236 | Clock Knob (4 Req) |
|
- | |||||
| 22 | M0282005 | Clock Knob (1 Req) (Replaces: 331235) |
|
$ 8.24 | |||||
| 23 | 329935 | Knob-selector Switch |
|
- | |||||
| 24 | 332595 | Backguard Glass |
|
- | |||||
| 25 | 331181 | Clock Electronic |
|
- | |||||
| 26 | 331180 | Bracket-clock |
|
- | |||||
| 27 | 78565 | Screw 8-3/16`` |
|
- | |||||
| 28 | 331451 | Mounting Panel-controls |
|
- |
