01 - 8 Cube Compact Ice Maker


02 - Compressor Parts


03 - Condenser Parts


04 - Evap Parts

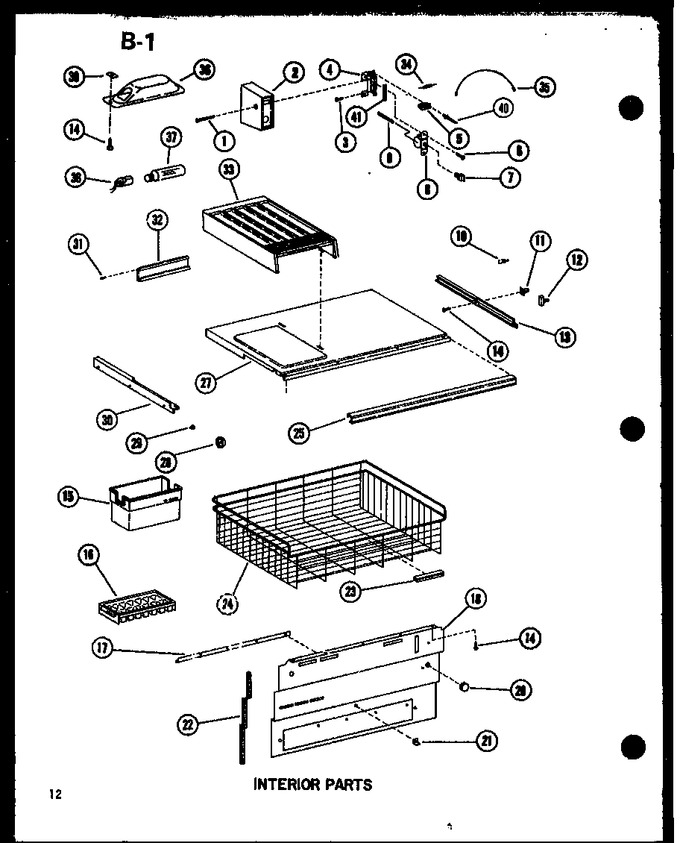

05 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0230926		Screw		Appelez-nous	-
2	D7278007		Escutcheon		Appelez-nous	-
3	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
4	C8850501		Bracket		Appelez-nous	-
5	M0341201		Switch		Appelez-nous	-
6	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
7	D7009801		Knob		Appelez-nous	-
8	C3615017		Control C H		Appelez-nous	-
9	B5636608		Cover-cap Tube		Appelez-nous	-
10	B5667301		Clip,wire		Appelez-nous	-
11	M0580007		Grommet, Screw		Appelez-nous	-
12	B5689501		Support		Appelez-nous	-
13	D3917304		Frame-glide Out		Appelez-nous	-
14	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
17	B5690901		Heat Conductor		Appelez-nous	-
18	D7153401		Evaporator Cover		Appelez-nous	-
20	A3069103		Plug		Appelez-nous	-
21	A3205701		Shelf Support		Appelez-nous	-
22	A3189304		Gasket, Foam		Appelez-nous	-
23	B0571806		Handle Basket		Appelez-nous	-
24	D7157102		Basket-freezer		Appelez-nous	-
25	C8832501		Trim-fr Shelf		Appelez-nous	-
27	C8841902		Shelf Frz Pnt		Appelez-nous	-
30	D3917303		Frame-glide Out		Appelez-nous	-
34	M0305301		Diode		Appelez-nous	-
35	A3221101		Wire-jumper		Appelez-nous	-
36	C8730101		Shield, Light		Appelez-nous	-
37	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
38	C8708801		Socket-light		Appelez-nous	-
39	M0288010		Speed Nut		Appelez-nous	-
40	M0010202		Rivet A		Appelez-nous	-
41	A3030335		Gasket-per Ft		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
