SELECT A DIAGRAM
New Model Search:

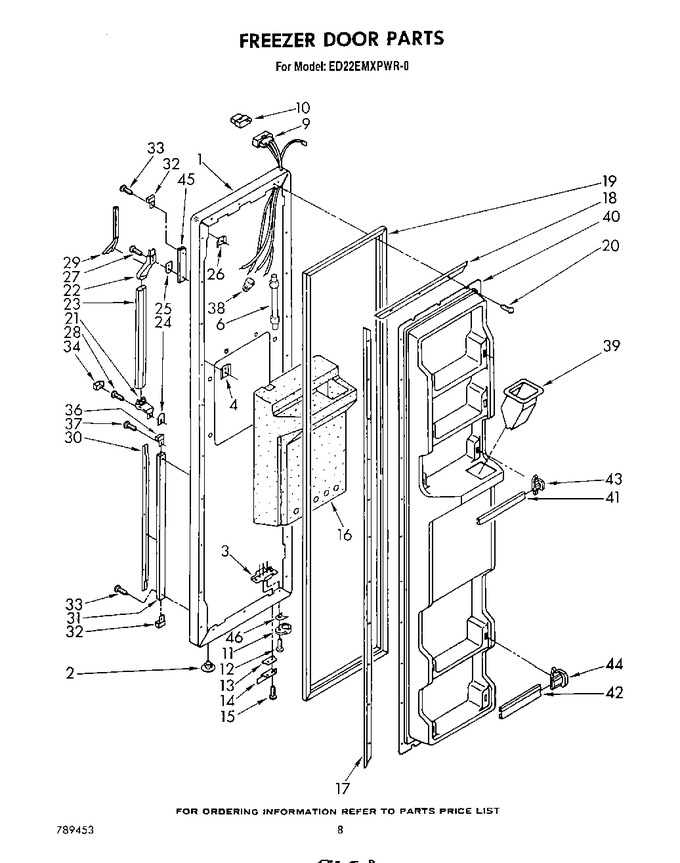

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1101381 | Door, Freezer (toast) |
|
- | |||||
| 1 | 1101382 | Door, Freezer (platinum) |
|
- | |||||
| 1 | 945025 | Door, Freezer (white) |
|
- | |||||
| 1 | 945027 | Door, Freezer (golden Harvest) |
|
- | |||||
| 1 | 945029 | Door, Freezer (almond) |
|
- | |||||
| 2 | 534927 | Plug, Hole |
|
- | |||||
| 3 | 988402 | Tap Plate |
|
- | |||||
| 4 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 6 | 991415 | Tube, Door Wiring |
|
- | |||||
| 9 | 851373 | Plug, Crossover (includes Illus. 10) |
|
- | |||||
| 10 | 851649 | Connector, Plug |
|
- | |||||
| 11 | 4318165 | Door, Closer (Replaces: 986758) |
|
Immediately | $ 29.74 | ||||
| 12 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 8.40 | ||||
| 13 | 988421 | Shim |
|
- | |||||
| 14 | 988420 | Bracket, Door Stop |
|
- | |||||
| 15 | 488930 | Screw (repair) |
|
- | |||||
| 15 | 488549 | Screw, 8 X 5/8 |
|
- | |||||
| 16 | 938649 | Insulation, Dispenser |
|
- | |||||
| 17 | 836120 | Retainer, Side (2) |
|
- | |||||
| 18 | 836122 | Retainer, Top & Bottom (2) |
|
- | |||||
| 19 | 2188405A | Gasket, Door (Replaces: 939566) |
|
$ 368.63 | |||||
| 20 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 20 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 21 | 935105 | End, Cap Handle |
|
$ 32.80 | |||||
| 22 | 935103 | Center, End Cap |
|
- | |||||
| 23 | 1110181 | Handle, Center |
|
- | |||||
| 24 | 935076 | Shim, Handle End |
|
- | |||||
| 25 | 935075 | Shim, End Center |
|
- | |||||
| 26 | 941242 | Screw Anchor |
|
- | |||||
| 27 | WPW10141645 | Screw, 8 X 1/2 (4) (Replaces: 489084) |
|
$ 8.05 | |||||
| 28 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 29 | 1110176 | Insert, Handle |
|
- | |||||
| 30 | 1110182 | Insert, Handle Extension |
|
- | |||||
| 31 | 942081 | Retainer, Insert |
|
- | |||||
| 32 | 941259 | End Cap |
|
- | |||||
| 33 | 489075 | Screw, 10-32 X 5/8 |
|
- | |||||
| 34 | 987873 | Cover, End Cap |
|
- | |||||
| 36 | 935106 | End Cap, Insert Retainer |
|
- | |||||
| 37 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 38 | 227991 | Connector, Screw |
|
- | |||||
| 39 | 987188 | Ice Chute |
|
- | |||||
| 40 | 1101396 | Interior Door Panel |
|
- | |||||
| 41 | 939773 | Door, Shelf Trim |
|
- | |||||
| 42 | 1110179 | Shelf, Trim (4) |
|
- | |||||
| 43 | 839975 | Door, Retainer (2) |
|
$ 5.84 | |||||
| 44 | 839904 | Door, Retainer (8) |
|
$ 5.65 | |||||
| 45 | 941954 | Retainer Insert |
|
- | |||||
| 46 | WP1104787 | Shim, Door Closer Cam (Replaces: 1104787) |
|
$ 7.96 |
