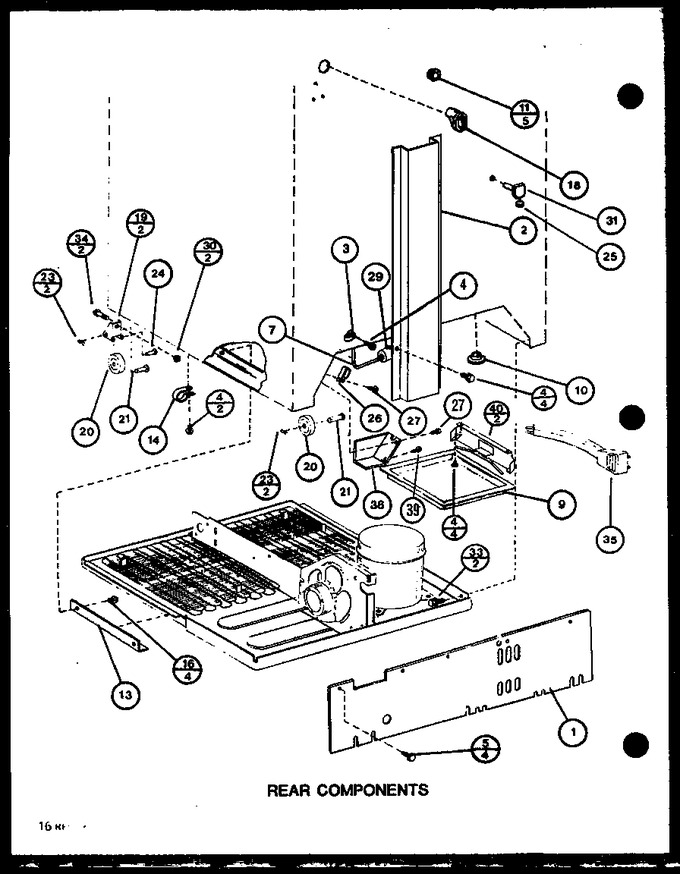

06 - Rear Components


07 - Ref Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8890207		Mc Back Assy		Appelez-nous	-
2	D7539413		Cover Ht. Exh		Appelez-nous	-
3	M0102325		Clamp		Appelez-nous	-
4	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
5	M0241118		Screw-sm		Appelez-nous	-
7	D7813901		Drain Tube		Appelez-nous	-
9	D7790601		Drain Pan		Appelez-nous	-
10	A3076901		Plug-button				$ 5.70
11	A3080001		Plug, Button (blk)		Appelez-nous	-
13	D7835501		Support M.c.		Appelez-nous	-
14	M0102303		Clamp		Appelez-nous	-
16	M0211530		Screw		Appelez-nous	-
18	B5749501		Tunnel-heat Ex		Appelez-nous	-
19	C8742401		Assy, Roller Bracket		Appelez-nous	-
20	M0520102		Roller		Appelez-nous	-
21	M1200202		Pin K		Appelez-nous	-
23	M1200004		Cotter Pin K		Appelez-nous	-
24	M1205302		Rivet				$ 5.85
25	M0310319		Plug Button		Appelez-nous	-
26	M0103901		Clamp		Appelez-nous	-
27	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
29	A0329813		Insulation, Tube		Appelez-nous	-
30	M0286708		Nut, Speed				$ 47.85
31	B8318809		Fill Tube		Appelez-nous	-
33	M0233844		Screw, T F		Appelez-nous	-
34	M0204339		Screw Bolt K		Appelez-nous	-
35	R0157154		Power Cord		Appelez-nous	-
38	D7663301		Cover, Wiring		Appelez-nous	-
39	M0253916		Screw		Appelez-nous	-
40	D7790501		Support Drain Pan		Appelez-nous	-
