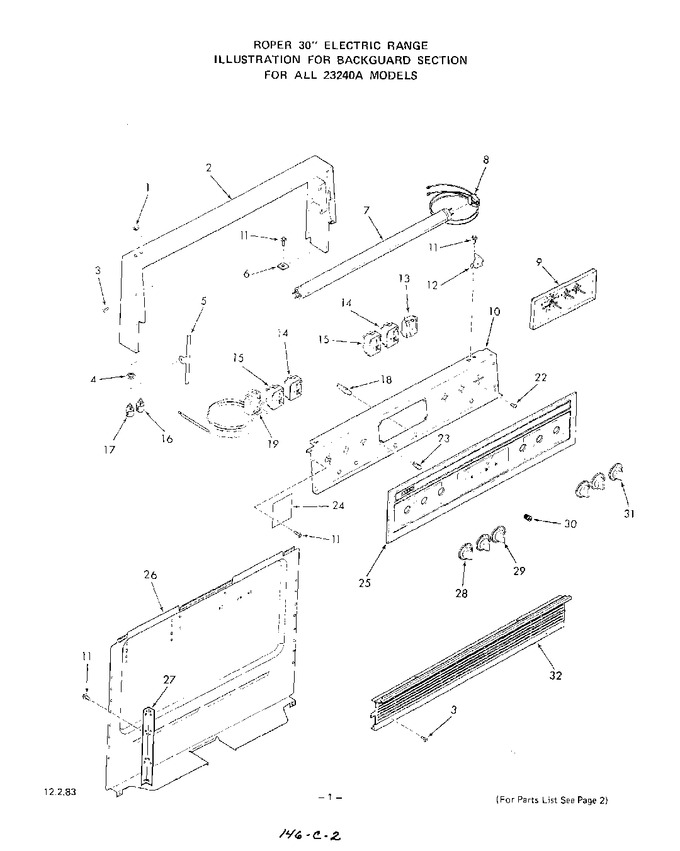

01 - Backguard
02 - Main Top
03 - Lit/optional Griddle
04 - Body
05 - Oven Door
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 87403 | Knurled Nut |
|
- | |||||
| 2 | 296584 | Frame-backguard |
|
- | |||||
| 3 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 4 | 236129 | Pal Nut |
|
- | |||||
| 5 | 299705 | End Trim- Top Lamp Glass (lt. Or Rt.) |
|
- | |||||
| 6 | 323523 | Plate (2 Req) |
|
- | |||||
| 7 | 71734 | Fluorescent Lamp (20 W - 24``) |
|
- | |||||
| 8 | 113745 | Right |
|
- | |||||
| 8 | 237316 | Left |
|
- | |||||
| 9 | 315267 | Clock W/1 Hr Timer |
|
- | |||||
| 10 | 307688 | Mounting Panel-controls |
|
- | |||||
| 11 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 12 | DD67-00074A | Bracket-fluorescent Lamp (rt. Or Lt.) (Replaces: 113236) |
|
Immediately | $ 1.84 | ||||
| 13 | 320942 | Selector Switch |
|
- | |||||
| 14 | 324609 | Infinite Switch Control-rt. Front & Lt. Rear |
|
- | |||||
| 15 | 324608 | Infinite Switch Control-lt. Front & Rt. Rear |
|
- | |||||
| 16 | DE81-03691A | Push Switch-fluorescent Lamp (Replaces: 105386) |
|
$ 110.00 | |||||
| 17 | 283523 | Push Switch-oven Light |
|
- | |||||
| 18 | 296317 | Surface |
|
- | |||||
| 18 | 326906 | Oven |
|
- | |||||
| 19 | 320937 | Oven Thermostat |
|
- | |||||
| 22 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 23 | 293577 | Tubular Clip (4 Req.) |
|
- | |||||
| 24 | 300330 | Shield Switch |
|
- | |||||
| 25 | 324095 | Top Lamp Glass |
|
- | |||||
| 26 | 326121 | Cover-backguard Wire |
|
- | |||||
| 27 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 28 | 327879 | Knob-thermostat |
|
- | |||||
| 29 | 325472 | Knob-infinite Switch Control (4 Req) |
|
- | |||||
| 30 | 109225 | Knob-clock (start & Stop Time) (3) |
|
- | |||||
| 31 | 327878 | Knob-selector Switch |
|
- | |||||
| 32 | 313668 | Bottom Front-backguard |
|
- |
