SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional

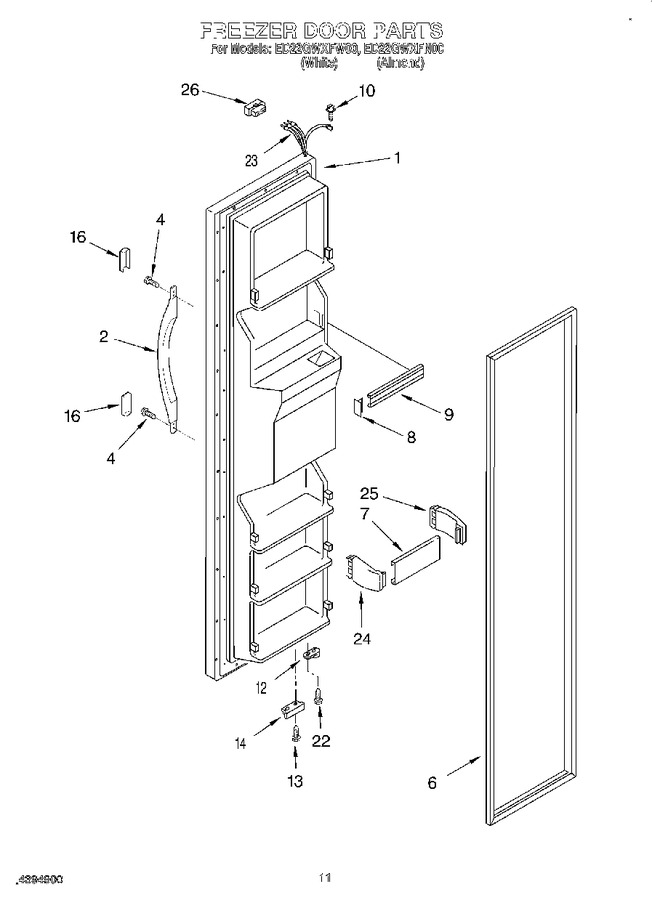

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186533W		Freezer Door (includes No.6 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2186533N		Freezer Door (includes No.6 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2193345B		Handle, Center (white)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
6	2159072		Door Gasket, Magnetic (service)				$ 291.24
7	2195919		Door, Shelf (4) Shelf (4)		Appelez-nous	-
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 21.84
10	WP488234		Screw   (Replaces: 489422)				$ 6.37
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2195950		Bracket, Door Stop				$ 5.84
16	2193353B		Endcap, Handle (2)				$ 5.85
22	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
23	2198273		Wire Harness		Appelez-nous	-
24	2195917		Endcap (left)		Appelez-nous	-
25	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 11.86
26	WP2154473		Connector   (Replaces: 2154473)				$ 22.35

    View Diagram in Separate Window       Print Part List
