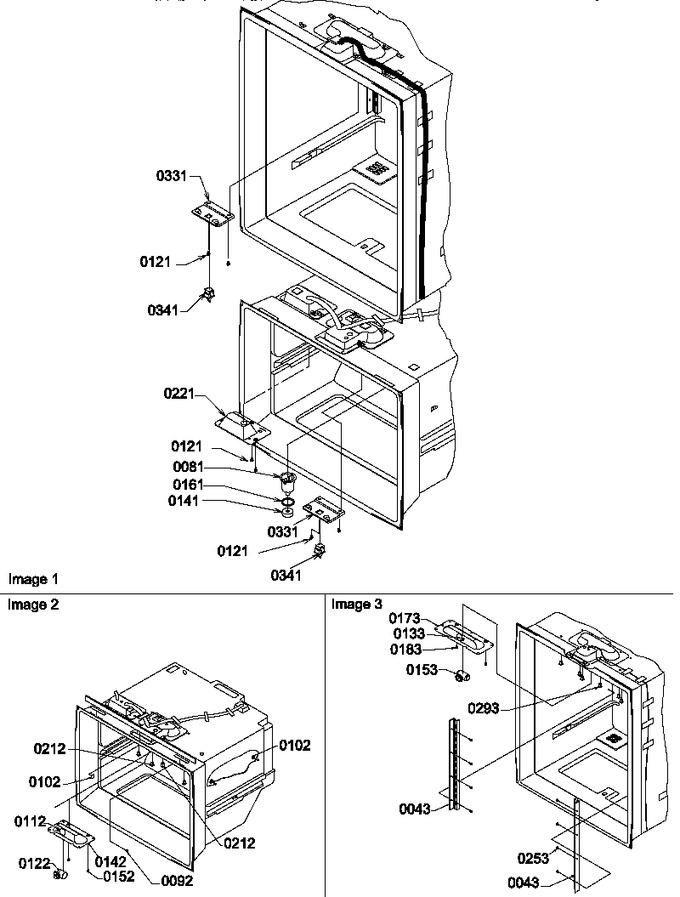

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
43	D7599105		Ladder, Side		Appelez-nous	-
81	W10815413		Funnel, Drain   (Replaces: D7753902)			Immediately	$ 51.50
92	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
102	M0311301		Plug Button		Appelez-nous	-
112	B5733302		Clip, Ground		Appelez-nous	-
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
122	C8973405		Socket-light		Appelez-nous	-
133	B5733302		Clip, Ground		Appelez-nous	-
141	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
142	D7760102		Housing Frz Light		Appelez-nous	-
152	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
153	12156201		Socket, Dual Lamp		Appelez-nous	-
161	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
173	D7716409		Housing-ref Light		Appelez-nous	-
183	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
212	M0581001		Grommet, Screw		Appelez-nous	-
221	10649702		Housing, Frz. Cont.		Appelez-nous	-
253	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
293	M0581001		Grommet, Screw		Appelez-nous	-
331	D7297603		Cover, Light Sw		Appelez-nous	-
341	W11384469		Switch-nc Light   (Replaces: C3680307)			Immediately	$ 39.09
