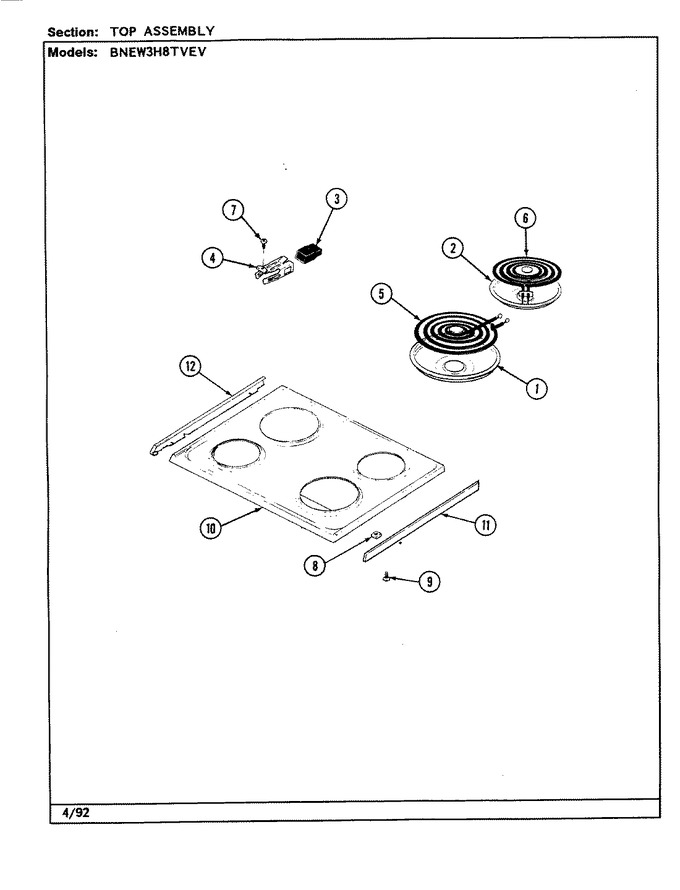

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 715878 | Bowl, Drip (8``) (chr) (Replaces: 7725P019-60) | 01 |
|
Immediately | $ 22.23 | |||
| 1 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 01 |
|
$ 15.67 | ||||
| 2 | 7744P053-60 | Ring, Trim (6``) | 01 |
|
- | ||||
| 2 | 715877 | Bowl, Drip (6``) (chr) (Replaces: 7725P018-60) | 01 |
|
Immediately | $ 81.35 | |||
| 3 | 12001676 | Receptacle, Surface Unit (Replaces: 7401P036-60) | 01 |
|
Immediately | $ 28.45 | |||
| 4 | 330031 | Clip, Receptacle (Replaces: 7112P059-60) | 01 |
|
Immediately | $ 17.93 | |||
| 5 | WPW10259865 | Element (8``) (Replaces: 7406P070-60) | 01 |
|
Immediately | $ 136.27 | |||
| 6 | WPW10259868 | Element (6``) (Replaces: 7406P069-60) | 01 |
|
Immediately | $ 155.85 | |||
| 7 | WP74004005 | Screw (Replaces: 7118P010-60) | 01 |
|
$ 7.79 | ||||
| 8 | M0282009 | Nut (Replaces: 7103P064-60) | 01 |
|
$ 12.66 | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 01 |
|
$ 7.25 | ||||
| 10 | 2002W028-81 | Top, Main (white) | 01 |
|
- | ||||
| 10 | 3802F029-80 | Brace, Main Top | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 01 |
|
Immediately | $ 7.52 | |||
| 11 | 7746P026-60 | Trim, Main Top (right) | 01 |
|
- | ||||
| 12 | 5175A044-60 | Harness, Surface Unit | 01 |
|
- | ||||
| 12 | 7746P025-60 | Trim, Main Top (left) | 01 |
|
- |
