01 - Backguard
02 - Main Top
03 - Power Lock
04 - Body
05 - Oven Door
06 - Wire Harness
07 - Wire Harness
SELECT A DIAGRAM
New Model Search:

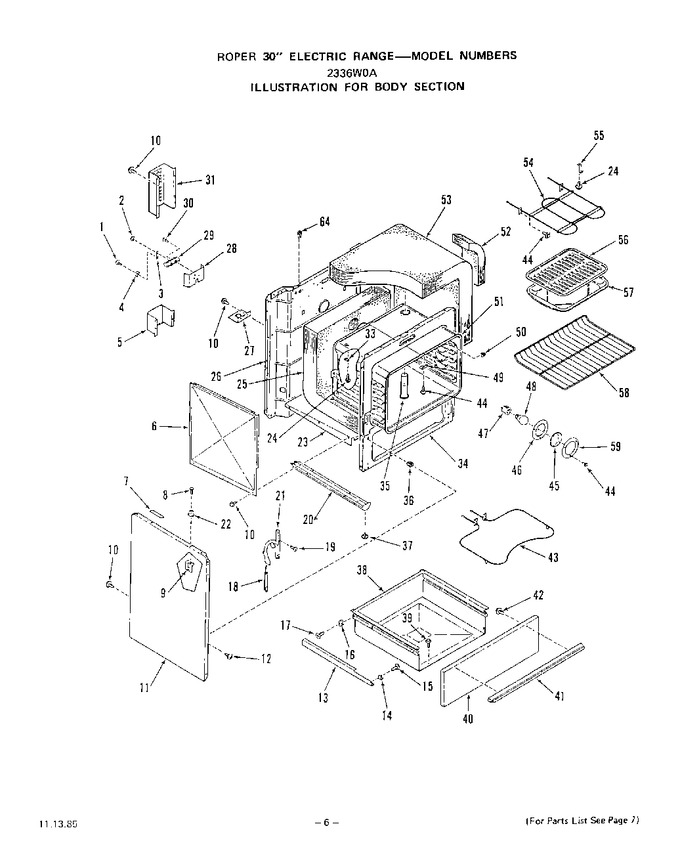

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | Screw 10-32x7/16`` |
|
- | |||||
| 2 | 453284 | G.m. Hex Nut 10-32 |
|
- | |||||
| 3 | 327255 | Ground Strap |
|
- | |||||
| 4 | 299425 | Washer |
|
- | |||||
| 5 | 327258 | Wire Shield-lower |
|
- | |||||
| 6 | 313284 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 7 | 326914 | Spacer-main Top (lt. Or Rt.) |
|
- | |||||
| 8 | 327256 | Screw 6-32x7/8`` |
|
- | |||||
| 9 | 326516 | Bracket-body Side (lt. Or Rt.) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 326055 | Body Side-lt. Or Rt. |
|
- | |||||
| 12 | 314124 | Screw 8abx5/8`` |
|
- | |||||
| 13 | 311441 | Support-storage Drawer (lt. Or Rt.) |
|
- | |||||
| 14 | 281914 | Slide Block-front (lt. Or Rt.) |
|
- | |||||
| 15 | 295849 | Screw 10-32x17/32`` |
|
- | |||||
| 16 | 281913 | Slide Block-rear (lt. Or Rt.) |
|
- | |||||
| 17 | DE81-02123A | Screw 8 - 32 X 3/8`` (Replaces: 102563) |
|
$ 1.66 | |||||
| 18 | 326965 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 19 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 20 | 326050 | Base W/levelers (lt. Or Rt.) |
|
- | |||||
| 21 | 326013 | Hinge-oven Door (left) |
|
- | |||||
| 21 | 326012 | Hinge-oven Door (right) |
|
- | |||||
| 22 | 326513 | Strike-main Top (lt. Or Rt.) |
|
- | |||||
| 23 | 313281 | Insulation Retainer-bottom |
|
- | |||||
| 24 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 25 | 308861 | Insulation-oven Bottom & Back (1 Piece) |
|
- | |||||
| 26 | 325879 | Main Back |
|
- | |||||
| 27 | 327259 | Range Service Mounting Plate |
|
- | |||||
| 28 | 327242 | Insulator-service Cord |
|
- | |||||
| 29 | 290105 | Junction Block |
|
- | |||||
| 30 | 313190 | Screw 10-32x1`` |
|
- | |||||
| 31 | 327235 | Wire Shield-upper |
|
- | |||||
| 33 | 237762 | Plate-thermostat Bulb Cover |
|
- | |||||
| 34 | 331587 | Front Frame |
|
- | |||||
| 35 | 308822 | Vent Tube |
|
- | |||||
| 36 | 330031 | Expansion Nut Spacer (6 Req) (Replaces: 312605) |
|
Immediately | $ 17.93 | ||||
| 37 | 326052 | Leg Leveler (4 Req) |
|
- | |||||
| 38 | 296150 | Storage Drawer |
|
- | |||||
| 39 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 40 | 326073 | Front Panel-storage Drawer |
|
- | |||||
| 41 | 286357 | Handle |
|
- | |||||
| 42 | 295850 | Screw 10 - 32 X 7/16`` |
|
- | |||||
| 43 | 326364 | Bake Element (208 Volt (optional)) |
|
- | |||||
| 43 | WG02F05414 | Bake Element (240 Volt) (Replaces: 325883) |
|
Immediately | $ 111.99 | ||||
| 44 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 45 | 114989 | Lens-oven Lamp |
|
- | |||||
| 46 | 229371 | Gasket-lens |
|
- | |||||
| 47 | 87883 | Holder-oven Lamp |
|
- | |||||
| 48 | STD372401 | Oven Lamp Bulb |
|
- | |||||
| 49 | 304835 | Cover |
|
- | |||||
| 50 | 321539 | Retainer-thermostat Bulb (2 Req) |
|
- | |||||
| 51 | 331578 | Oven Body |
|
- | |||||
| 52 | 316951 | Insulation (rt. Or Lt.) |
|
- | |||||
| 53 | 308860 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 54 | 326938 | Broiler Element (240 Volt) |
|
- | |||||
| 54 | 326939 | Broiler Element (208 Volt (optional)) |
|
- | |||||
| 55 | 324808 | Support-broiler Element (2 Req) |
|
- | |||||
| 56 | 326297 | Broiler Pan Grid |
|
- | |||||
| 57 | 331592 | Broiler Pan |
|
- | |||||
| 58 | 326069 | Oven Rack (2 Req) |
|
- | |||||
| 59 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 64 | 327649 | Clip-capillary Tube |
|
- |
