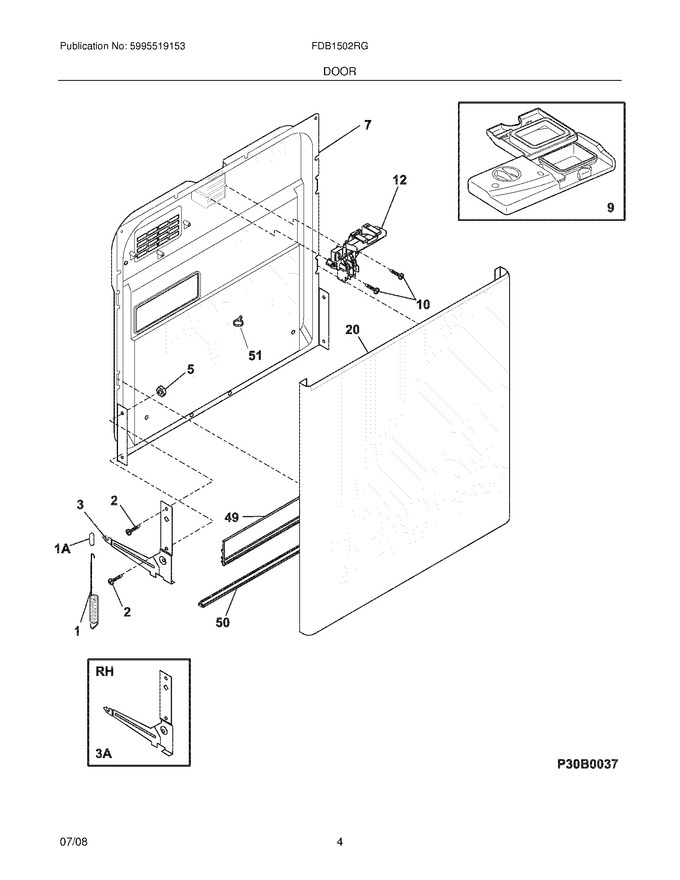

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring,door ,(2) |
|
Immediately | $ 40.34 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.36 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154597503) |
|
Immediately | $ 73.96 | ||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.46 | |||||
| 7 | 154299006 | Door,inner Assy |
|
$ 222.23 | |||||
| 9 | 5304506521 | Dispenser,det/rinse Aid ,w/o Reed (Replaces: 154542103) |
|
Immediately | $ 110.05 | ||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 14.96 | |||||
| 20 | 154538312 | Door,silver Mist |
|
$ 152.09 | |||||
| 49 | 809006501 | Gasket,door ,bottom (Replaces: 154576501) |
|
Immediately | $ 40.24 | ||||
| 50 | 154211401 | Support-door Hinge |
|
$ 25.69 | |||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage,door Spring ,(2) |
|
Immediately | $ 30.30 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154596103) |
|
Immediately | $ 73.96 | ||||
| F12 | A00099902 | Latch Assy,black (Replaces: 154556703) |
|
Immediately | $ 103.62 | ||||
| NI | 808326801 | Screw,no.8-18 X .375 (Replaces: 154409401) |
|
$ 3.15 | |||||
| NI | 154529101 | Pin,arm Assy |
|
$ 4.62 | |||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 10.24 | |||||
| NI | 5304428306 | Screw,door Mtg. ,(2) |
|
$ 4.67 |
