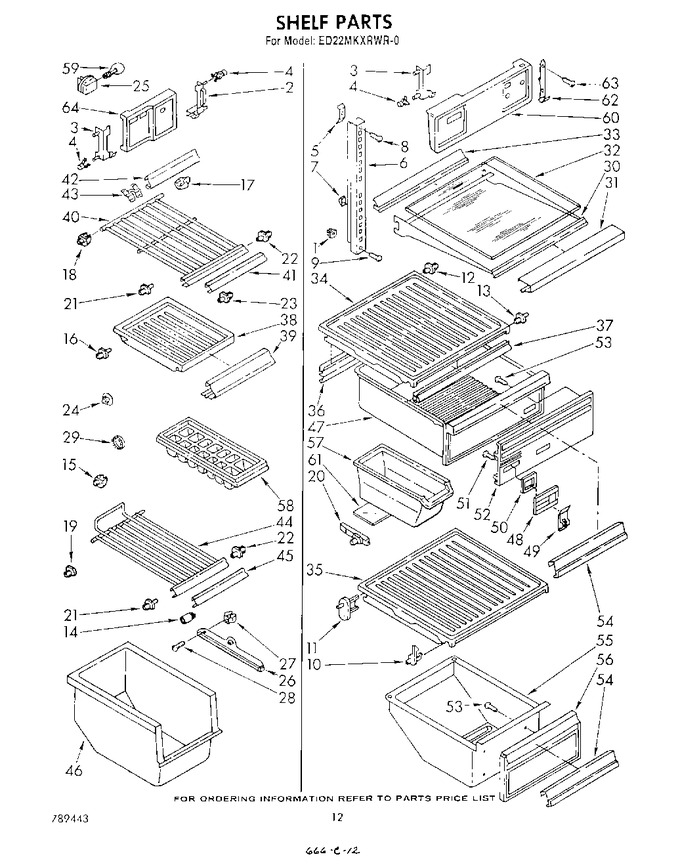

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	842355		Support, Light Lens (r.s.)		Appelez-nous	-
3	842356		Support, Light Lens (l.s.)		Appelez-nous	-
4	843945		Clip, Tubular		Appelez-nous	-
5	983604		Screw Anchor		Appelez-nous	-
6	934264		Shelf, Ladder		Appelez-nous	-
7	520965		Screw, Support Ladder				$ 31.35
8	488357		Screw, 8 X 1-1/4		Appelez-nous	-
9	488960		Screw, 10-32 X 1-1/4		Appelez-nous	-
9	488980		Screw (repair)		Appelez-nous	-
10	984779		Shelf, Stud		Appelez-nous	-
11	937521		Shelf Stud		Appelez-nous	-
12	936591		Stud				$ 6.18
13	208500		Shelf, Stud		Appelez-nous	-
14	533881		Grommet		Appelez-nous	-
15	210518		Shelf Support		Appelez-nous	-
16	529758		Shelf, Stud		Appelez-nous	-
17	937516		Shelf Stud Saddle (r.s.)		Appelez-nous	-
18	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
19	512900		Stud, Retainer		Appelez-nous	-
20	935243		Stud, Light Lens (r.s.)		Appelez-nous	-
20	935982		Stud Light Lens (l.s.)		Appelez-nous	-
21	521878		Shelf Stud		Appelez-nous	-
22	936957		Shelf, Stud		Appelez-nous	-
23	937513		Shelf, Stud		Appelez-nous	-
24	659598		Hole, Plug		Appelez-nous	-
25	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
26	982321		Slide, Freezer Bin		Appelez-nous	-
27	537095		Expansion Clip		Appelez-nous	-
28	487979		Screw, 8 X 1		Appelez-nous	-
29	519890		Hole, Plug		Appelez-nous	-
30	936787		Shelf, Cantilever		Appelez-nous	-
31	849021		Trim, Shelf		Appelez-nous	-
32	1108782		Glass, Cantilever Shelf		Appelez-nous	-
33	849028		Reflector, Cantilever		Appelez-nous	-
34	1108778		Pan Slide & Cover		Appelez-nous	-
35	1101202		Pan Slide & Cover		Appelez-nous	-
36	982588		Crisper Basket, Rear		Appelez-nous	-
37	982587		Crisper Gasket Front		Appelez-nous	-
38	848947		Solid Shelf		Appelez-nous	-
39	985522		Solid Shelf Trim		Appelez-nous	-
40	981500		Shelf, Freezer		Appelez-nous	-
41	985590		Shelf, Freezer Trim		Appelez-nous	-
42	935420		Shelf Reflector		Appelez-nous	-
43	939348		Clip, Reflector		Appelez-nous	-
44	986975		Shelf, Ice Cube Pan		Appelez-nous	-
45	985590		Shelf Trim, Ice Pan		Appelez-nous	-
46	1108784		Freezer Bin, Plastic		Appelez-nous	-
47	943112		Pan Crisper		Appelez-nous	-
48	942234		Housing, Humidity Control		Appelez-nous	-
49	942235		Slide, Humidity Control		Appelez-nous	-
50	942236		Seal, Humidity Control		Appelez-nous	-
51	489041		Screw, 6-19 X 7/16		Appelez-nous	-
52	1108777		Front Cover, Crisper		Appelez-nous	-
53	488132		Screw (repair)		Appelez-nous	-
53	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
54	984750		Overlay, Front Cover		Appelez-nous	-
55	840037		Pan		Appelez-nous	-
56	1108780		Front Cover, Meat Pan		Appelez-nous	-
57	WP982704		Container, Utility   (Replaces: 1106048)				$ 32.55
58	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
59	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
60	943218		Light Lens, Refrigerator		Appelez-nous	-
61	935418		Light Lens, Crisper		Appelez-nous	-
62	984552		Support Light Lens, Refrigerator		Appelez-nous	-
63	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
64	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
64	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
64	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
64	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
64	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
64	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
64	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
64	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
64	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
64	833938		Kit, Terminal Connector				$ 8.47
64	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
64	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
64	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
64	985456		Light Lens, Freezer		Appelez-nous	-
64	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
64	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
64	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
64	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
64	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
64	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
64	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
64	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
64	799908		Silicone (spray)		Appelez-nous	-
64	350942		Primer White (13 Oz. Spray Can)				$ 94.14
64	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
64	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
64	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
64	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
64	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
64	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
64	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
64	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
64	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
64	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
64	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
64	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT1108912		Energy Label		Appelez-nous	-
	LIT789443		Parts List		Appelez-nous	-
	LIT1105009		Service & Wiring Sheet		Appelez-nous	-
	LIT1109121		Care & Use Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
