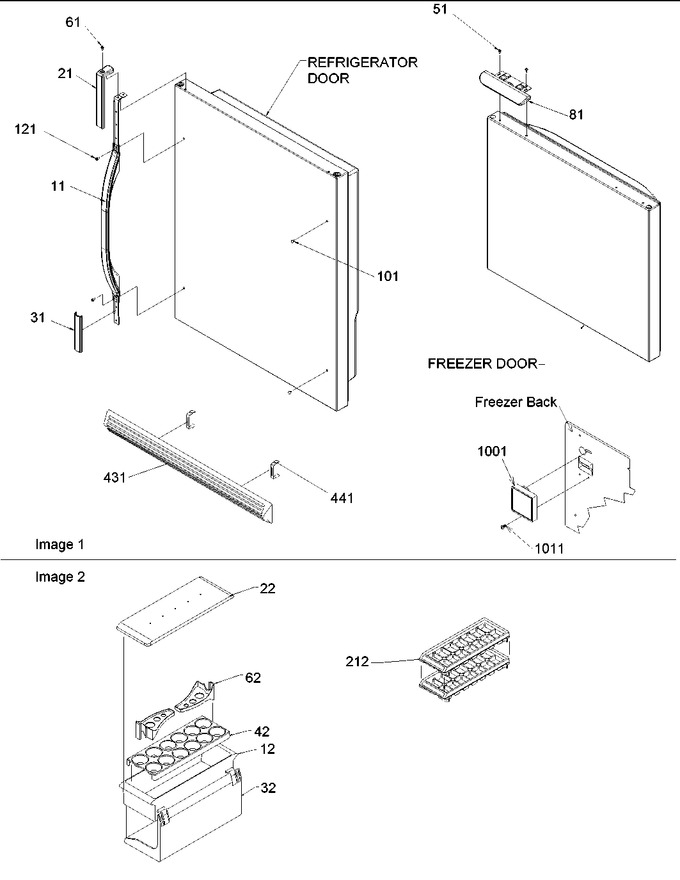

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443505B		Handle,ref Dr(black)		Appelez-nous	-
12	10423131SP		Bin, Utility		Appelez-nous	-
21	12443303		Trim, Upper Handle (black)		Appelez-nous	-
22	10436404S		Lid-utility		Appelez-nous	-
31	12273512		Trim, Lwr Handle (black)		Appelez-nous	-
32	10448903SP		Rack, Bottle		Appelez-nous	-
42	10436506S		Tray, Egg		Appelez-nous	-
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
61	12248201		Screw, Hndl Cone				$ 5.48
62	12103905S		Snugger, Door Shelf		Appelez-nous	-
81	67005125		Handle,frz (black)   (Replaces: 12610801B)				$ 149.13
101	WP12246610		Plug, Handle Hole (stnls)   (Replaces: 12246606)			Immediately	$ 8.15
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
212	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
431	10474901		Grille, Toe (18)		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
1001	D7874403		Cover-fl Tb/plug		Appelez-nous	-
1011	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
