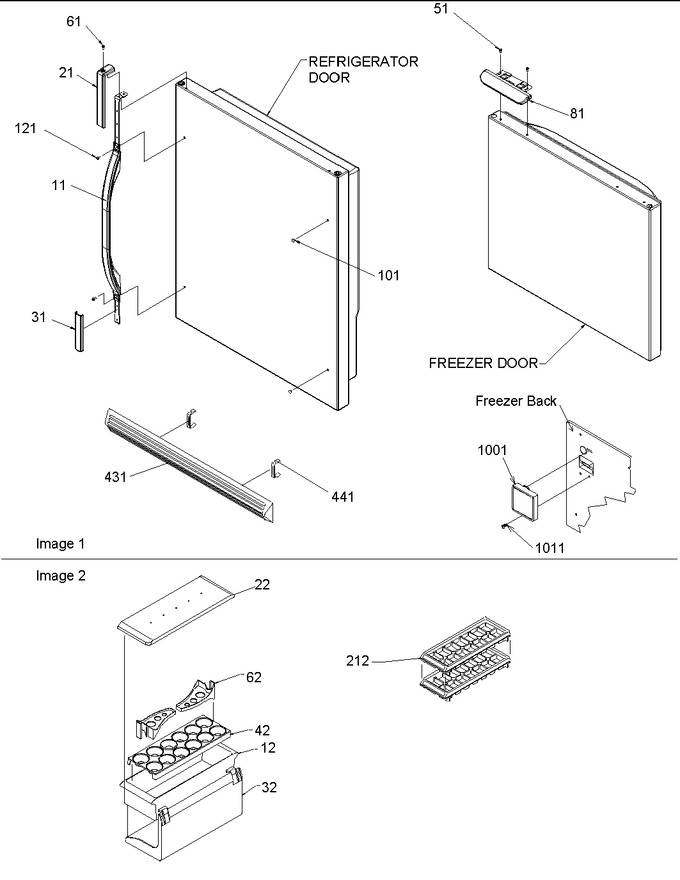

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443505W		Handle,ref Dr(white)		Appelez-nous	-
12	10423131		Bin, Utility				$ 31.13
21	12443301		Trim, Upper Handle		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
31	12273510		Trim, Lwr Handle		Appelez-nous	-
32	10448903		Rack, Bottle		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
61	12248201		Screw, Hndl Cone				$ 5.48
62	12103905		Snugger, Door Shelf		Appelez-nous	-
81	WP67005140		Handle, Fz Dr (wht)   (Replaces: 12610801W)			Immediately	$ 155.76
101	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
212	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
431	10474902		Grille, Toe (white) (19)		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
1001	D7874403		Cover-fl Tb/plug		Appelez-nous	-
1011	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
