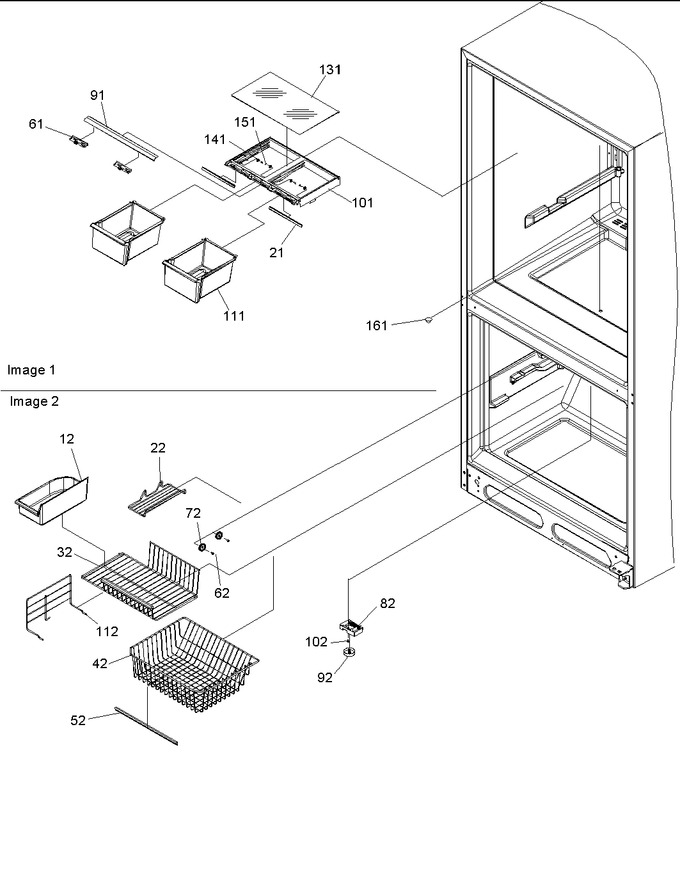

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 12190801 | Pan, Ice |
|
- | |||||
| 21 | 12226401 | Seal, Crisper |
|
- | |||||
| 22 | 12646501 | Rack, Ice Tray |
|
- | |||||
| 32 | 12204706 | Shelf, Frz Glide |
|
- | |||||
| 42 | 12216802 | Basket, Lower |
|
- | |||||
| 52 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 61 | 12227101 | Knob, Control |
|
- | |||||
| 62 | WP67006908 | Screw (Replaces: M0230919) |
|
Immediately | $ 8.78 | ||||
| 72 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 82 | D7878825 | Cover, Frz Cont |
|
- | |||||
| 91 | 10688081 | Ext, Crisper |
|
- | |||||
| 92 | D7689905 | Knob, Control |
|
- | |||||
| 101 | 12227201 | Frame, Crisper |
|
- | |||||
| 102 | M0216531 | Screw |
|
- | |||||
| 111 | 12226703 | Pan,crisper |
|
- | |||||
| 112 | D7806002 | Divider, Wire |
|
- | |||||
| 131 | 12204804 | Shelf, Crisper (glass) |
|
- | |||||
| 141 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 151 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 161 | M0310330 | Plug, Button White |
|
- |
