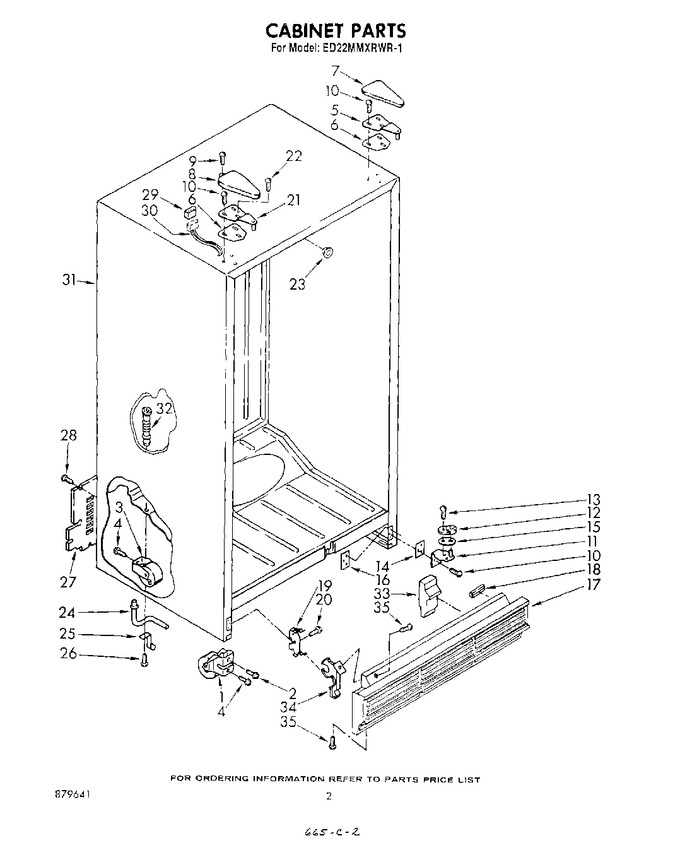

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 981127 | Roller, Front (2) |
|
- | |||||
| 2 | 488681 | Screw, 5/16-24 X 1 |
|
- | |||||
| 3 | WPW10250570 | Roller Assembly, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 4 | 488454 | Screw, 1/4-28 X 1/2 (4) |
|
- | |||||
| 5 | 842039 | Hinge, Top |
|
- | |||||
| 6 | 836192 | Shim, Top Hinge |
|
- | |||||
| 7 | 842010 | Hinge Cover (white) |
|
- | |||||
| 7 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 7 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 7 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 7 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 8 | 987191 | Hinge Cover (white) |
|
- | |||||
| 8 | 989885 | Hinge Cover (golden Harvest) |
|
- | |||||
| 8 | 989887 | Hinge Cover (almond) |
|
- | |||||
| 8 | 1100381 | Hinge Cover (toast) |
|
- | |||||
| 8 | 1100382 | Hinge Cover (platinum) |
|
- | |||||
| 9 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 10 | 488949 | Screw, 12-14 X 3 (repair) |
|
- | |||||
| 10 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 11 | 986763 | Hinge Bottom (r.h) |
|
- | |||||
| 11 | 986764 | Hinge Bottom (l.h) |
|
- | |||||
| 12 | WPW10329686 | Closer, Door (2) (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 13 | 488913 | Screw (repair) |
|
- | |||||
| 13 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 487983) |
|
$ 7.89 | |||||
| 14 | 836196 | Shim, Bottom Hinge |
|
- | |||||
| 15 | 987179 | Shim, Door Closer (0.30) |
|
- | |||||
| 16 | 836162 | Plate, Tap |
|
- | |||||
| 17 | 944239 | Exterior Grille (white) |
|
- | |||||
| 17 | 1101380 | Exterior Grille (platinum) |
|
- | |||||
| 17 | 1101379 | Exterior Grille (toast) |
|
- | |||||
| 17 | 944243 | Exterior Grille (almond) |
|
- | |||||
| 17 | 944241 | Exterior Grille (golden Harvest) |
|
- | |||||
| 18 | 546131 | Bumper, Grille (2) |
|
- | |||||
| 19 | 989068 | Support, Grille (2) |
|
- | |||||
| 20 | W11624204 | Screw, 8 X 1/2 (2) (Replaces: 486194) |
|
$ 14.72 | |||||
| 21 | 983608 | Hinge Assembly Top, L.s. |
|
- | |||||
| 22 | WP488234 | Screw, 8-32 X 5/32 (Replaces: 488889) |
|
$ 7.08 | |||||
| 23 | 839989 | Grommet |
|
- | |||||
| 24 | 841646 | Extension Fitting |
|
- | |||||
| 25 | 841648 | Clip, Drain |
|
- | |||||
| 26 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 27 | 850457 | Cover, Unit Compartment |
|
- | |||||
| 28 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 29 | 851648 | Receptacle, Head |
|
- | |||||
| 30 | 482553 | Harness, Wiring (6`` Leads) (includes Illus. 29) |
|
- | |||||
| 31 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 32 | 836068 | Drain Fitting |
|
- | |||||
| 33 | 836372 | Insert, Baffle |
|
- | |||||
| 34 | WP944224 | Grille Support (Replaces: 944224) |
|
$ 7.94 | |||||
| 35 | 489085 | Screw, 8-22 X 5/16 (4) |
|
- |
