SELECT A DIAGRAM

01 - Page 1


02 - Page 2


03 - Page 3


04 - Page 4


05 - Page 5


06 - Page 6


07 - Page 7


08 - Page 8

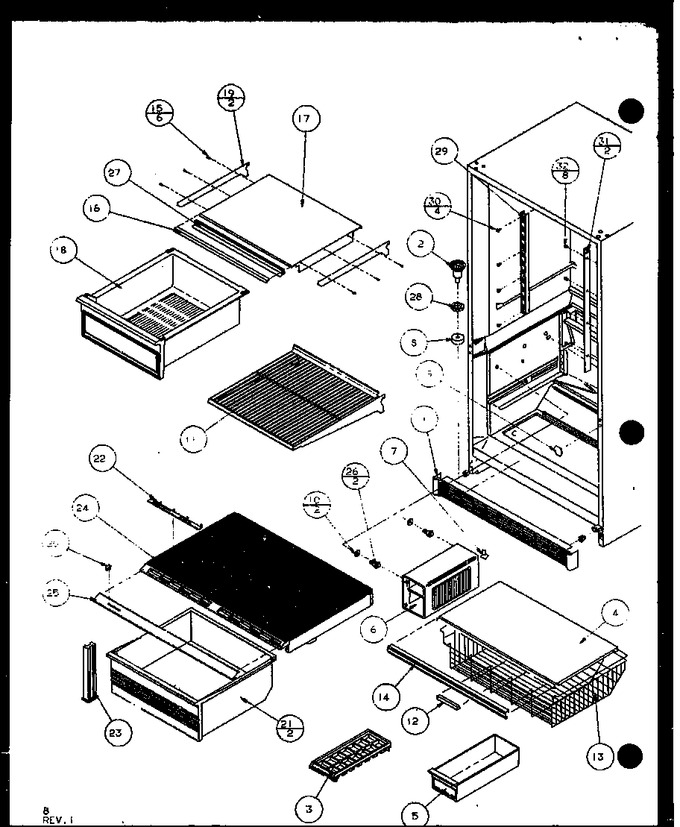

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520510		Grille-toe-b K				$ 44.22
2	W10815413		Funnel, Drain   (Replaces: D7753901)			Immediately	$ 51.50
3	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
4	D7681202		Shelf		Appelez-nous	-
5	D7620011		Ice Bin		Appelez-nous	-
5	D7620031		Bin-ice A		Appelez-nous	-
6	D7620112		Rack, Ice		Appelez-nous	-
7	B5720301		Clip		Appelez-nous	-
8	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.78
9	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
10	M0270508		Washer		Appelez-nous	-
11	D7654908		Shelf, Wire		Appelez-nous	-
12	B0571806		Handle Basket		Appelez-nous	-
13	D7677402		Basket		Appelez-nous	-
14	C8832512		Trim, Fz Shelf		Appelez-nous	-
15	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
16	C8913535		Trim Frz Door		Appelez-nous	-
17	D7698205		Top M.k		Appelez-nous	-
18	D7710519		Drawer-deli		Appelez-nous	-
19	D7862968		Side Rail		Appelez-nous	-
19	D7862969		Side Rail		Appelez-nous	-
20	C8908301		Knob Humidity A-k		Appelez-nous	-
21	D7581038		Pan, Crisper		Appelez-nous	-
22	D7587705		Slide Humidity		Appelez-nous	-
23	D7602202		Crisper Support Post		Appelez-nous	-
24	D7616505		Top,crisper A-k		Appelez-nous	-
25	D7616684		Trim		Appelez-nous	-
26	M0219559		Screw		Appelez-nous	-
27	D7718401		Seal Meat Pan		Appelez-nous	-
28	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 11.47
29	D7599002		Ladder, Center		Appelez-nous	-
30	M0230923		Screw		Appelez-nous	-
31	D7599105		Ladder, Side		Appelez-nous	-
32	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	Y00000000		See Note Ice Maker		Appelez-nous	-
NI	D7882009		Crisper Top Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
