SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Optional

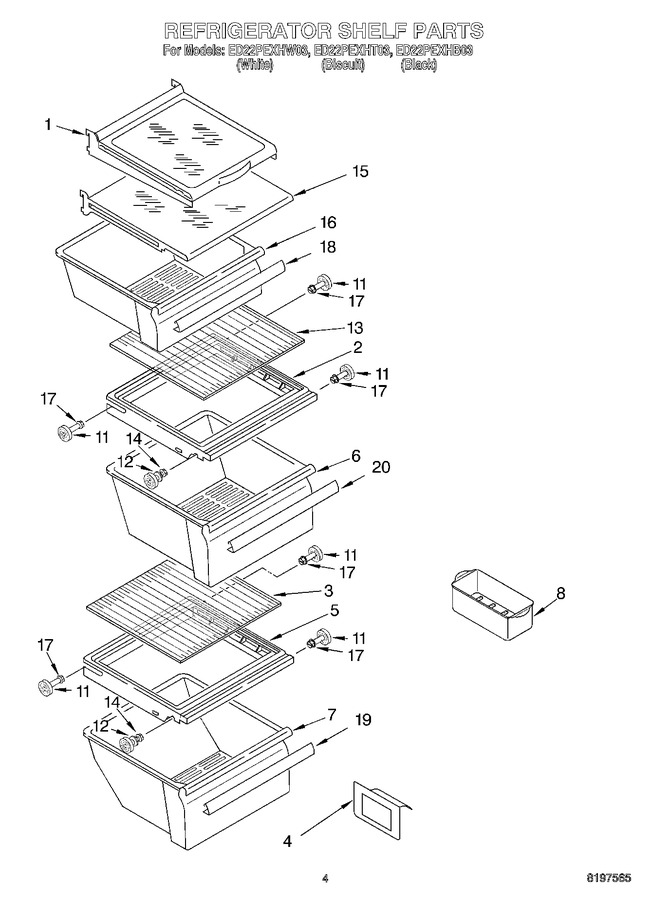

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194281		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 305.85
3	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
4	2179350		Deflector				$ 85.89
5	2217039		Cover, Meat Pan		Appelez-nous	-
6	WP2188661		Pan, Crisper   (Replaces: 2196229)			Immediately	$ 162.07
7	WP2188664		Meat Pan   (Replaces: 2196231)			Immediately	$ 92.70
8	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
11	WP2196483		Shelf Assembly   (Replaces: 2196483)				$ 10.87
12	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
13	W10864399		Glass, Cover   (Replaces: 2174150)				$ 232.03
14	WP3-24004-109		Screw   (Replaces: 3400894)				$ 9.14
15	2206347		Shelf, Snack Bin		Appelez-nous	-
16	W11497323		Snack Bin   (Replaces: 2196233)				$ 234.84
17	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
18	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 109.65
19	WP2179234		Trim, Handle   (Replaces: 2194906)				$ 88.57
20	2194905		Trim, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
