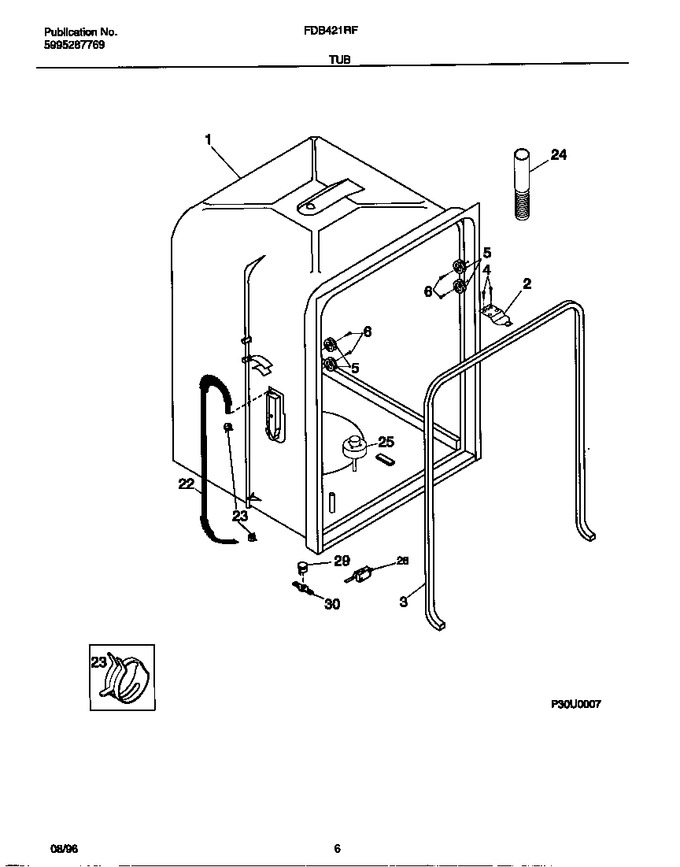

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154209301 | Tub Assy, W/frame Parts |
|
$ 453.86 | |||||
| 2 | 154662601 | Strike-door (Replaces: 154211601) |
|
Immediately | $ 44.10 | ||||
| 3 | 8581548276014 | Gasket-tub (Replaces: 154211801) |
|
Immediately | $ 29.22 | ||||
| 4 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| 5 | 5304507405 | Roller-tub (Replaces: 154080001) |
|
Immediately | $ 28.66 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 19.69 | ||||
| 22 | 5304523457 | Tubing-water Inlet (Replaces: 154239801) |
|
Immediately | $ 17.15 | ||||
| 23 | 5304538466 | Clamp-tubing,(2) (Replaces: 5303318539) |
|
Immediately | $ 2.57 | ||||
| 24 | 154225602 | Hose-drain (Replaces: 154225601) |
|
Immediately | $ 50.41 | ||||
| 25 | 5304532207 | Float (Replaces: 154209701) |
|
Immediately | $ 7.65 | ||||
| 29 | 154290204 | Thermostat (Replaces: 154290201) |
|
Immediately | $ 71.66 | ||||
| 30 | 154241101 | Retainer,thermostat |
|
$ 4.02 | |||||
| *95128 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *95129 | 154238302 | Insulation, Tub |
|
- | |||||
| 28A | 154225501 | Switch,float |
|
$ 84.68 | |||||
| 28B | 154773201 | Bracket-float Switch (not Illustrated) (Replaces: 154209801) |
|
Immediately | $ 61.43 |
