Diagram # Part Number Description Series Availability Ships Price Add to Cart
121 12077305 Hinge, Top Appelez-nous -
141 B8345401 Gasket, Damper Appelez-nous -
151 10562204 Kit, Ctr Hinge Shim Appelez-nous -
161 10562205 Shim, Ctr. Hinge Appelez-nous -
171 10562206 Shim, Ctr. Hinge Appelez-nous -
181 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.27

191 67007018 Pin, Hinge (btm)   (Replaces: 10200801) In-Stock Immediately $ 8.21

201 C8902601 Insert, Control Appelez-nous -
211 12446505 Hinge, Ctr W-e Ct Appelez-nous -
231 D7795826 Knob, Control (wht) Appelez-nous -
241 12056201 Shield, Ref Light Sw Appelez-nous -
261 R0161050 Damper Control Kit Special Order $ 120.41

321 D7687530 Cover, Refr Control Appelez-nous -
331 D7687701 Insul. Damper Appelez-nous -
361 W11384469 Switch, Light   (Replaces: C3680310) In-Stock Immediately $ 37.23

381 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.00

401 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.02

411 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.95

441 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.00

471 10451301 Shim, Top Hinge Special Order $ 1.08

481 10451302 Shim, Top Hinge Special Order $ 0.63

491 10451303 Shim, Top Hinge Special Order $ 1.08

511 10444809 Cover, Hinge (almond) Appelez-nous -
601 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 9.38

631 10391302 Support, Pin Appelez-nous -
651 M0274058 Shim, Non Metal (wht) Special Order $ 5.83

771 M0221523 Screw, Shldr Appelez-nous -
831 12056301 Cover, Ref Light Appelez-nous -
841 10493302 Cover, Frz Light Appelez-nous -
851 M0238846 Screw-sm Appelez-nous -
861 M0310730 Plug Button (almond) Appelez-nous -
1601 M0310330 Plug, Button White Appelez-nous -
1711 M0270538 Washer Appelez-nous -
8401 W10887190 Bulb, Light (60 Watt)   (Replaces: A0282807) In-Stock Immediately $ 18.31


    View Diagram in Separate Window     Print Icon   Print Part List

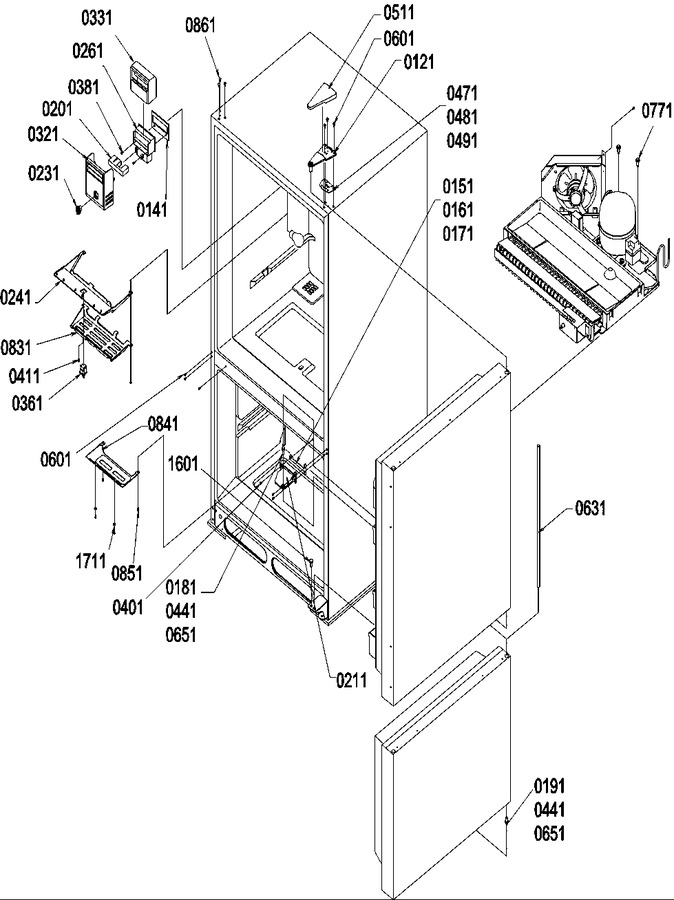

Diagram for BR22VL (BOM: P1321505W L)
