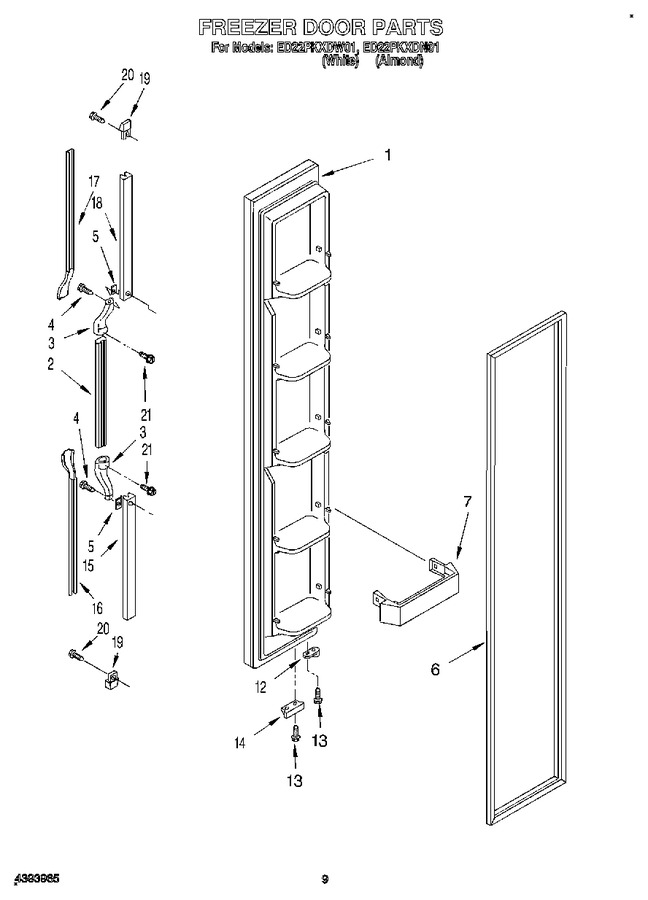

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171114		Freezer Door (includes No.6) (white)		Appelez-nous	-
1	2171115		Freezer Door (includes No.6) (almond)		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	2156017		Trivet, Door Shelf (4)		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2155332		Bracket, Door Stop		Appelez-nous	-
15	1119360		Retainer, Insert		Appelez-nous	-
16	1119361		Insert, Handle (white)		Appelez-nous	-
16	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119367		Insert, Handle (white)		Appelez-nous	-
17	1119369		Insert, Handle (almond)		Appelez-nous	-
18	1119366		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap (2)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	489022		Screw		Appelez-nous	-
