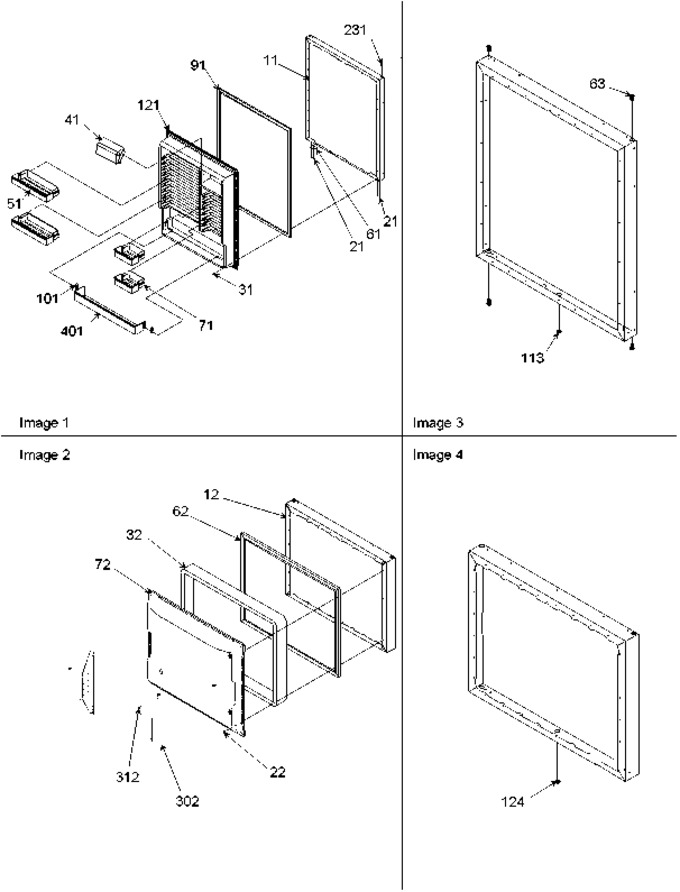

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12206803W		Assy,ref Dr Foam(white)		Appelez-nous	-
12	12589401W		Assy,fz Dr Foam(white)btm		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation, Batt   (Replaces: B0523561)				$ 231.56
41	10423420		Door,dairy		Appelez-nous	-
51	10419708		Shelf, Ref Door		Appelez-nous	-
61	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 65.99
62	WP12550122Q		Freezer Door Gasket   (Replaces: 12550122)				$ 290.45
63	10961001		Bushing, Door (wht)		Appelez-nous	-
71	10502912		Bucket, Ref Door		Appelez-nous	-
72	12564002		Liner,fz Door		Appelez-nous	-
91	WP12550121Q		Gasket,ref Dr(white)   (Replaces: 12550121)				$ 321.03
101	10202001		Clip, Retainer		Appelez-nous	-
113	M0310308		Plug, Button (wht)		Appelez-nous	-
121	12228701		Liner, Ref Door		Appelez-nous	-
124	M0310308		Plug, Button (wht)		Appelez-nous	-
231	10686401		Plug Button		Appelez-nous	-
302	12564201WD		Bracket,vertical-e Ct		Appelez-nous	-
312	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 7.97
401	10419108		Retainer, Door Ref.		Appelez-nous	-
