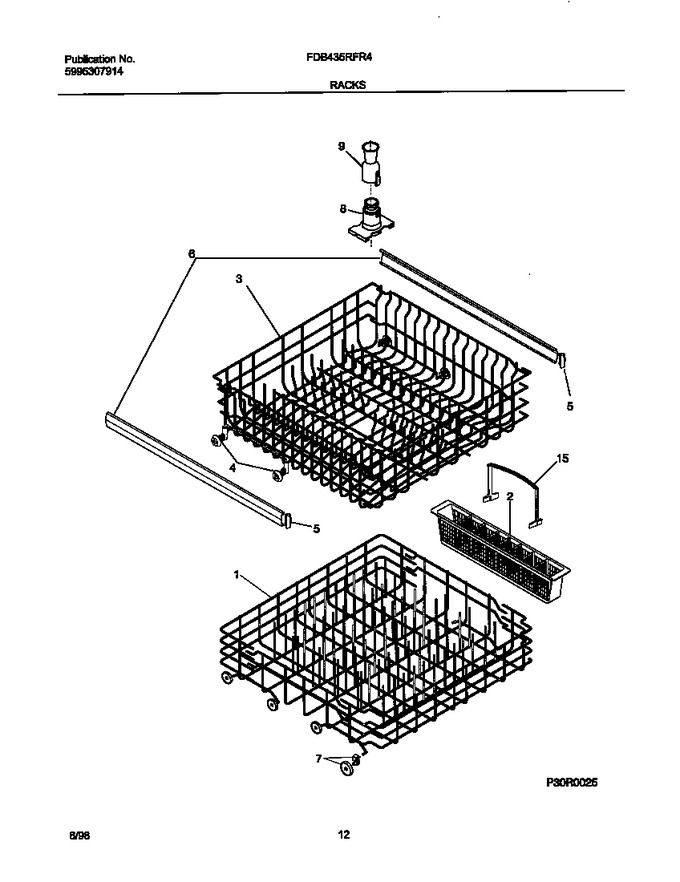

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assy-lower (Replaces: 154320904) |
|
Immediately | $ 180.68 | ||||
| 2 | 5304535382 | Basket-silverware (Replaces: 154295201) |
|
Immediately | $ 28.25 | ||||
| 3 | 140229954072 | Rack Assy-upper (Replaces: 154321104) |
|
Immediately | $ 161.25 | ||||
| 4 | 5304535381 | Wheel & Bracket Assy, Upper Rack (Replaces: 5300809974) |
|
Immediately | $ 11.17 | ||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 4.10 | ||||
| 6 | 154597801 | Slide,rack ,(2) (Replaces: 154232701) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174501) |
|
Immediately | $ 14.17 | ||||
| 8 | 154728001 | Base-funnel (Replaces: 154304001) |
|
$ 30.03 | |||||
| 9 | 154251801 | Funnel |
|
$ 49.88 | |||||
| 15 | 5304535382 | Handle-siverware Basket (Replaces: 154254001) |
|
Immediately | $ 28.25 |
