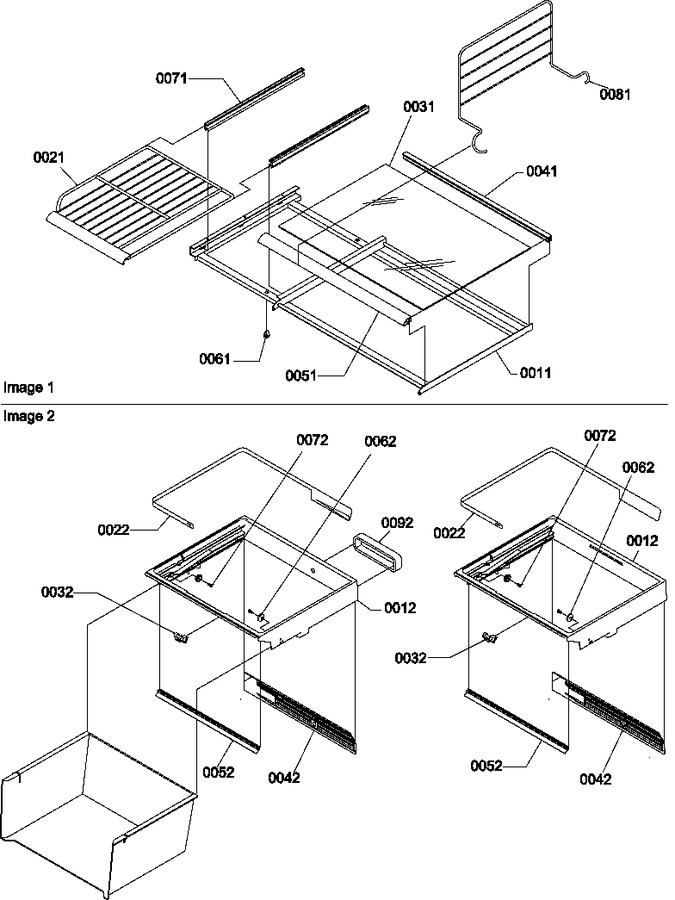

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12094301		Assy, Frz Shelf Frame		Appelez-nous	-
12	12031902		Frame, Crisper				$ 38.00
12	12031901		Frame, Ref Deli		Appelez-nous	-
21	12059201		Shelf-fz Wire		Appelez-nous	-
22	12059501		Band, Ref Deli Cont		Appelez-nous	-
22	12059502		Band, Crisper Cont		Appelez-nous	-
31	10370092		Glass-shelf		Appelez-nous	-
32	12051202		Slide, Crisper/deli		Appelez-nous	-
41	12094201		Extr-rear Shelf		Appelez-nous	-
42	12050801		Insert, Band Guide		Appelez-nous	-
51	12094101		Extr-front Shelf		Appelez-nous	-
52	10968802		Seal, Crisper Front		Appelez-nous	-
61	10875101		Stop, Shelf		Appelez-nous	-
62	10481001		Roller, Pan				$ 10.99
71	12094901		Glide-fz Shelf		Appelez-nous	-
72	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.28
81	12112601		Divider, Frz Shelf		Appelez-nous	-
92	12079801		Seal, Ref Deli		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
