SELECT A DIAGRAM

02 - Cabinet


03 - Breaker, Trim And Liner


04 - Airflow

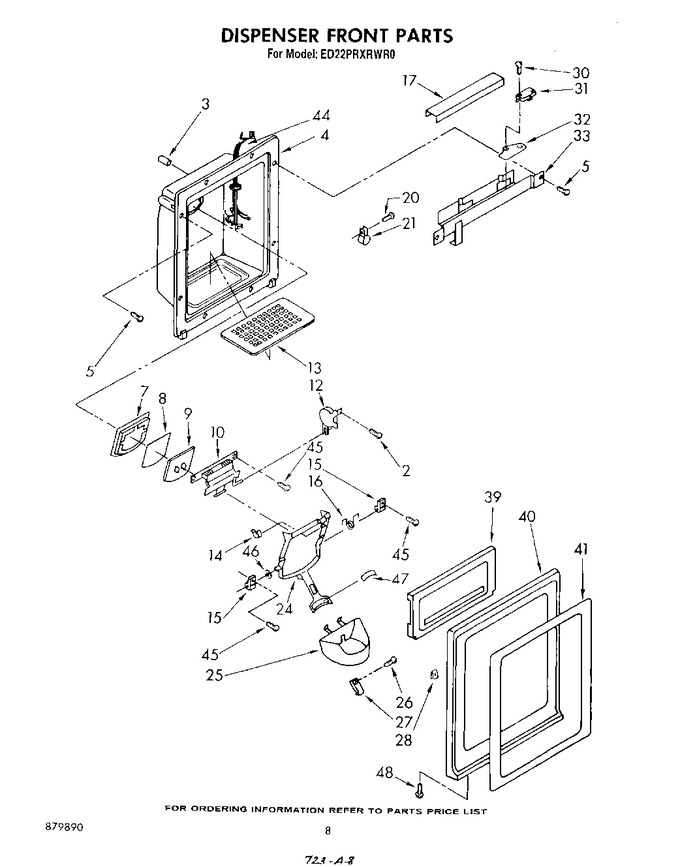

05 - Dispenser Front


06 - Refrigerator Door


07 - Freezer Door


08 - Unit


09 - Freezer Interior


10 - Refrigerator Interior , Lit/optional


11 - Icemaker


12 - Airflow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
3	488316		Screw, 8-18 X 3/4		Appelez-nous	-
4	1109482		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw, 8 X 5/8 (8)   (Replaces: 488687)			Immediately	$ 14.76
7	983691		Gasket, Door				$ 6.61
8	987121		Shield, Ice Door				$ 5.91
9	983690		Door, Ice				$ 11.13
10	938669		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Delay Mechanism   (Replaces: 938665)				$ 223.72
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
20	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
21	WP488878		Clamp   (Replaces: 488878)				$ 12.18
24	987075		Lever, Ice Dispenser				$ 46.56
25	985866		Guide, Ice				$ 18.30
26	488892		Screw, 4-24 X 3/8		Appelez-nous	-
27	986088		Stop, Glass		Appelez-nous	-
28	488885		Nut, Speed (2)		Appelez-nous	-
30	489155		Screw, 4-40 X 1		Appelez-nous	-
31	841336		Switch (2)		Appelez-nous	-
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	1109484		Bracket, Control		Appelez-nous	-
39	1119765		Cover, Housing		Appelez-nous	-
40	983903		Front Cover, Housing		Appelez-nous	-
41	936565		Insert, Housing		Appelez-nous	-
44	1108247		Wiring Assembly, Door		Appelez-nous	-
45	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
46	488307		Washer (repair)		Appelez-nous	-
47	983693		Pad, Lever		Appelez-nous	-
48	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
