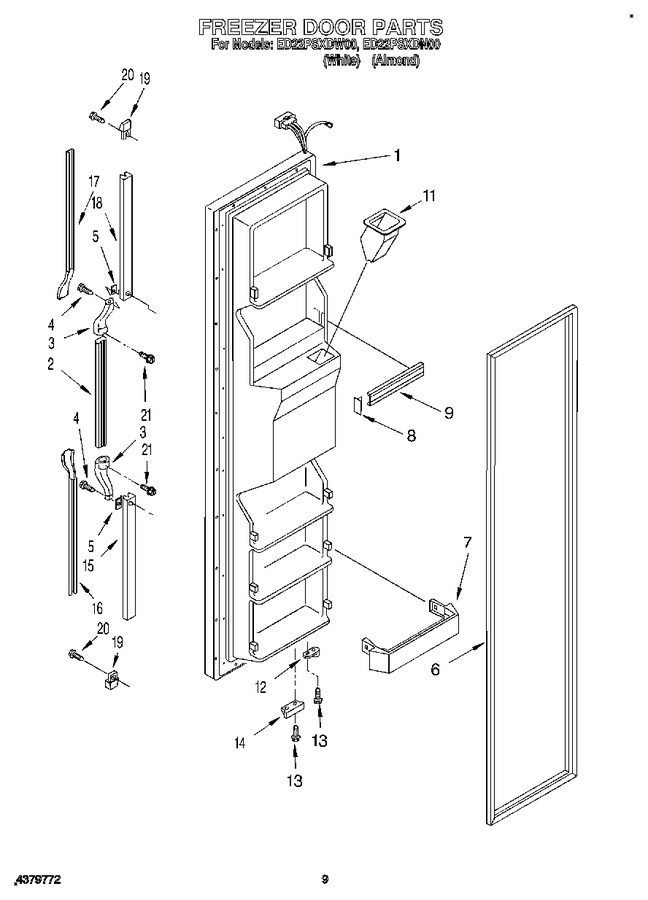

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2180415		Freezer Door (includes No.6 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2180416		Freezer Door (includes No.6 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 308.19
7	2156017		Trivet, Door Shelf (4)		Appelez-nous	-
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
9	WPW10307490		Trim, Door Shelf   (Replaces: 2156011)			Immediately	$ 23.11
11	2156145		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 27.36
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2155331		Bracket, Door Stop		Appelez-nous	-
15	1119360		Retainer, Insert		Appelez-nous	-
16	1119361		Insert, Handle (white)		Appelez-nous	-
16	1119363		Insert, Handle (almond)		Appelez-nous	-
17	1119367		Insert, Handle (white)		Appelez-nous	-
17	1119369		Insert, Handle (almond)		Appelez-nous	-
18	1119366		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap (2)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	489022		Screw		Appelez-nous	-
