SELECT A DIAGRAM

01 - Bottom Hinges & Rollers


02 - Cabinet Back


03 - Condenser & Timer Box Assy


04 - Contour Panels, Handles & Grille


05 - Control, Hinges & Shields


06 - Crisper & Deli Frame Assy


07 - Door Assy


08 - Evaporator Area


09 - Ice Maker Assy & Parts

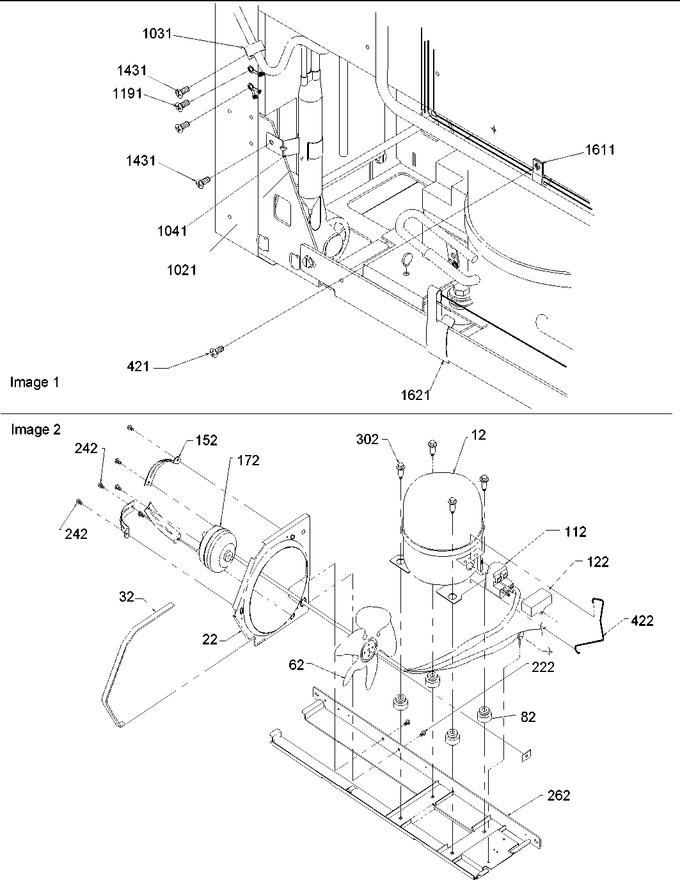

10 - Machine Compartment


11 - Shelf Ladders & Light Assy


12 - Shelving


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	W10309990		Kit, Compressor (1380)   (Replaces: 12049710)			Immediately	$ 632.81
22	12051110		Shroud, Cond Fan-e Ct		Appelez-nous	-
32	A3030359		Gasket		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.19
112	12468201		Overload, Relay		Appelez-nous	-
122	WP65889-4		Capacitor   (Replaces: C8931612)			Immediately	$ 61.14
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	833697		Motor, Condenser   (Replaces: 10884504)			Immediately	$ 88.15
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.82
242	M0223816		Screw, Tr				$ 5.27
262	12152901		Weld, Comp Frame		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
421	M0227217		Screw, Sm		Appelez-nous	-
422	12468101		Strap, Bale		Appelez-nous	-
1021	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46
1031	M0103904		Clamp, Speed		Appelez-nous	-
1041	10547002		Clip, Drier		Appelez-nous	-
1191	WP489399		Screw, Ca   (Replaces: M0239216)				$ 6.95
1431	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
1611	M0102325		Clamp		Appelez-nous	-
1621	12088901		Clip, M.c. Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
