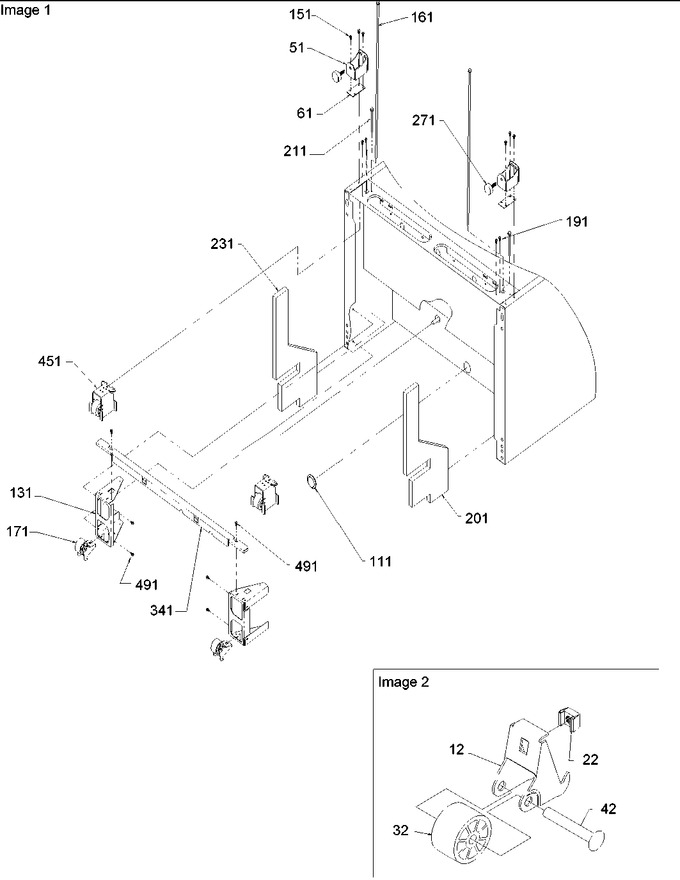

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10514801		Bracket, Roller		Appelez-nous	-
22	M0286708		Nut, Speed				$ 45.57
32	WP10450603		Roller   (Replaces: 10450602)				$ 7.88
42	M1205302		Rivet				$ 5.85
51	12050707		Hinge, Bottom E Ct (blk)		Appelez-nous	-
61	10447905		Shim, Hinge (btm)		Appelez-nous	-
111	A3076901		Plug-button				$ 5.70
131	12039102		Bracket, Rear Roller		Appelez-nous	-
151	WP67006715		Screw, Sm   (Replaces: M0241508)				$ 7.19
161	10093312		Screw, 70`` Mach		Appelez-nous	-
171	10476101Q		Assy, Roller Brkt		Appelez-nous	-
191	W11573574		Screw, Sm   (Replaces: M0211031)			Immediately	$ 14.02
201	10987526		Insulation, Right Foot		Appelez-nous	-
211	M0204336		Screw, Adj Roller		Appelez-nous	-
231	10987525		Insulation, Left Foot		Appelez-nous	-
271	W11177593		Brake, Foot   (Replaces: 10354001)				$ 11.60
341	12038901		Rail, Comp Supp		Appelez-nous	-
451	12452601Q		Assy, Roller Bracket		Appelez-nous	-
491	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 7.68
