Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10954104 Evap Fan Shrd- E Ct Appelez-nous -
22 W10116797 Assy, Fan-evap   (Replaces: 10855401) In-Stock Immediately $ 8.56

23 12028301 Thermostat, Defrost Appelez-nous -
32 10449503 Motor, Evap Fan Special Order $ 92.65

33 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

42 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

43 R0000338 Kit,defrost Heater(240v) Appelez-nous -
52 10656101 Brkt Mtr Appelez-nous -
53 R0170069 Assy, Low Side Appelez-nous -
62 10909401 Brkt, Mtr Mt Appelez-nous -
72 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

82 B8386609 Gasket Appelez-nous -
83 12141901 Block, Evaporator Appelez-nous -
102 M0580007 Grommet, Screw Appelez-nous -
111 B8386610 Gasket Appelez-nous -
153 10789104 T Stat Appelez-nous -
291 11036689 Evap Cover-pnt   (Replaces: 12032202) Special Order $ 266.10

351 D7689906 Knob, Control Appelez-nous -
381 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

411 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

761 A3189320 Gasket, Foam Appelez-nous -
871 12032404 Shield, Evaporator- E Ct Appelez-nous -
881 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

901 10623002 Clip, Evaporator Special Order $ 12.11

921 10952502 Cover, Fan Shroud Appelez-nous -
931 12031802 Tray, Drip Appelez-nous -
941 12059702 Dam-rtn Air L Appelez-nous -
951 12059701 Dam-rtn Air R Appelez-nous -
971 12179902 Brkt-control Appelez-nous -
981 M0253916 Screw Appelez-nous -
1001 C8946704 Control -temp Appelez-nous -
1121 M0310341 Plug, Button Appelez-nous -
1141 M0310305 Plug, Button (wht) Appelez-nous -
1201 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

1211 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

1241 A3030353 Gasket Appelez-nous -
1671 B8386604 Gasket, Air Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

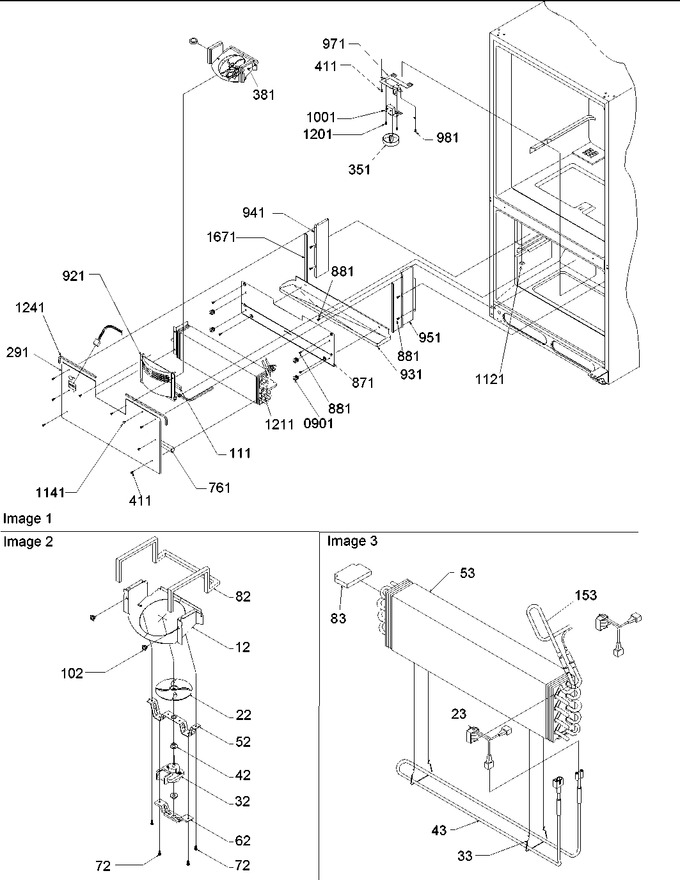

Diagram for BRF520TE (BOM: P1301501W E)
