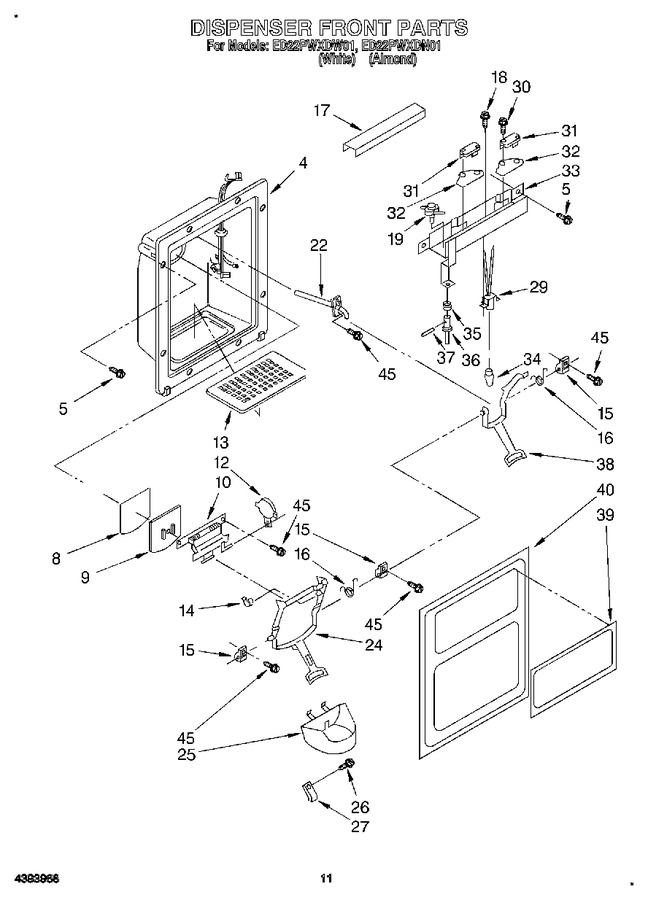

08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
8	987121		Shield, Ice Door				$ 5.91
9	WP2180353		Door, Ice   (Replaces: 2177296)			Immediately	$ 24.69
10	2157650		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 213.07
13	1126120		Grille, Overflow (white)		Appelez-nous	-
13	1126121		Grille, Overflow (almond)		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 10.88
19	851386		Switch, Light		Appelez-nous	-
22	WP4388152		Water Fitting Assembly   (Replaces: 2157744)				$ 276.43
24	2177144		Lever, Ice Dispenser (white)				$ 42.05
24	2177145		Lever, Ice Dispenser (almond)		Appelez-nous	-
25	1125977		Guide, Ice (almond)		Appelez-nous	-
25	2147479		Guide, Ice (white)		Appelez-nous	-
26	489197		Screw		Appelez-nous	-
27	2147480		Stop, Glass (white)		Appelez-nous	-
27	1125978		Stop, Glass (almond)		Appelez-nous	-
29	987265		Socket, Lamp		Appelez-nous	-
30	00488362		Screw   (Replaces: 488362)				$ 144.58
31	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 27.34
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	1129283		Bracket, Control		Appelez-nous	-
34	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 13.66
35	983986		Spring, Plunger		Appelez-nous	-
36	1116563		Plunger		Appelez-nous	-
37	983987		Pin, Retainer		Appelez-nous	-
38	2177150		Lever, Water (almond Dispenser)		Appelez-nous	-
38	2177149		Lever, Water (white)				$ 37.42
39	2175844		Plaque, Front Cover (white)		Appelez-nous	-
39	2171495		Plaque, Front Cover (almond)		Appelez-nous	-
40	2177169		Front Cover, Housing (includes Item 39) (white)		Appelez-nous	-
40	2177171		Front Cover, Housing (includes Item 39) (almond)		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 7.84
