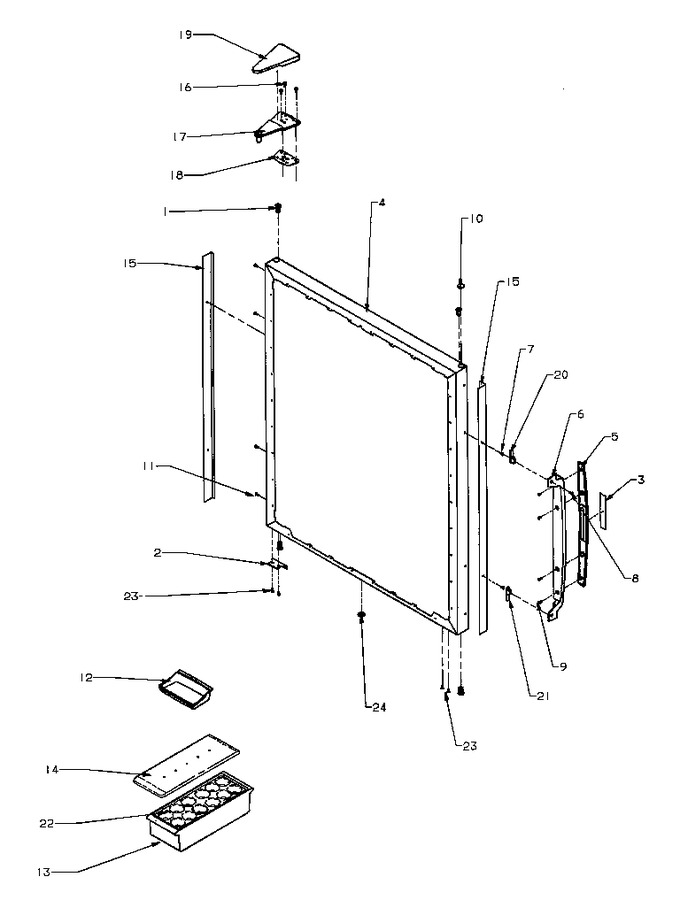

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	10447101		Stop, Door (18)		Appelez-nous	-
3	C8945005		Nameplate		Appelez-nous	-
4	10537202LQ		Assy, Ref Dr (almond)		Appelez-nous	-
4	10537202WQ		Assy Ref. Dr		Appelez-nous	-
5	D7694707		Insert K		Appelez-nous	-
6	D7694803		Handle				$ 125.50
8	67006529		Screw Sm   (Replaces: M0206219)				$ 13.47
9	WP8281236		Screw (counter Sunk)   (Replaces: M0215704)				$ 8.16
10	10686402		Plug, Button		Appelez-nous	-
10	10686401		Plug Button		Appelez-nous	-
11	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
11	M0310730		Plug Button (almond)		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	10423118		Bin, Egg		Appelez-nous	-
14	10436404		Lid, Utility				$ 60.85
16	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
17	10185104		Assy, Top Hinge		Appelez-nous	-
18	10448503		Shim, Top Hinge		Appelez-nous	-
18	10448501		Shim, Top Hinge		Appelez-nous	-
18	10448502		Shim, Top Hinge		Appelez-nous	-
19	10444703		Cover, Hinge (almond)		Appelez-nous	-
19	10444705		Kit Hinge Cover (white)		Appelez-nous	-
20	B8372001		Spacer, Handle		Appelez-nous	-
21	B8372002		Spacer, Handle		Appelez-nous	-
22	10436504		Tray, Egg		Appelez-nous	-
23	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
24	M0310308		Plug, Button (wht)		Appelez-nous	-
24	M0310338		Plug Button Almond		Appelez-nous	-
