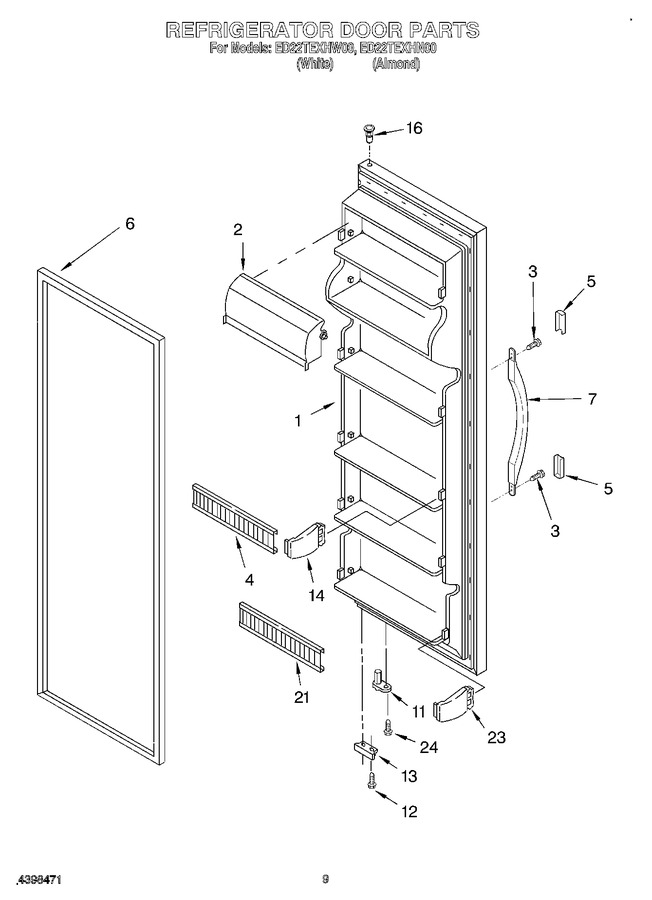

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2198498W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2198498N		Refrigerator Door (includes Item 6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	2198488		Trim, Door (4)		Appelez-nous	-
5	2193353N		Endcap, Handle (2) (almond)		Appelez-nous	-
5	WP2193353W		Endcap, Handle (2) (white)   (Replaces: 2193353W)				$ 8.11
6	2159073		Door Gasket, Magnetic (repair)				$ 317.32
7	2186649W		Handle, Center (white)				$ 70.49
7	2186649N		Handle, Center (almond)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2195950		Bracket, Door Stop				$ 5.84
14	WP2195916K		End Cap (6)   (Replaces: 2195916)			Immediately	$ 12.55
16	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
21	2198486		Trim, Door (1)		Appelez-nous	-
23	WP2195915		Endcap (2)   (Replaces: 2195915)				$ 13.07
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
