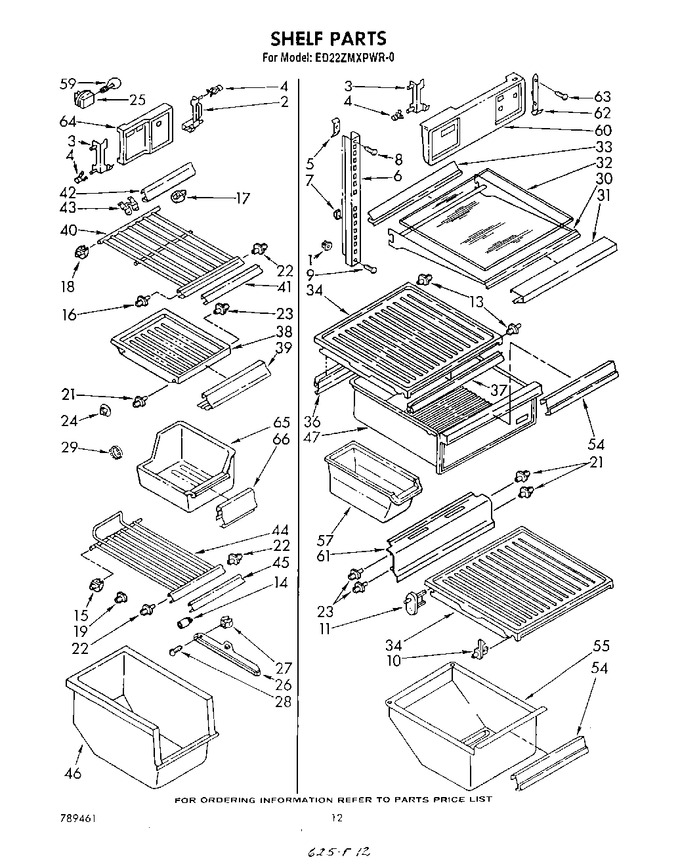

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	842355		Support, Light Lens (r.s.)		Appelez-nous	-
3	842356		Support, Light Lens (l.s.)		Appelez-nous	-
4	843945		Clip, Tubular		Appelez-nous	-
5	983604		Screw Anchor		Appelez-nous	-
6	934264		Shelf, Ladder		Appelez-nous	-
7	520965		Screw, Support Ladder				$ 31.35
8	488357		Screw, 8 X 1-1/4		Appelez-nous	-
9	488960		Screw, 10-32 X 1-1/4		Appelez-nous	-
9	488980		Screw (repair)		Appelez-nous	-
10	984779		Shelf, Stud		Appelez-nous	-
11	937515		Shelf Stud		Appelez-nous	-
13	208500		Shelf, Stud		Appelez-nous	-
14	533881		Grommet		Appelez-nous	-
15	210518		Shelf Support		Appelez-nous	-
16	529758		Shelf, Stud		Appelez-nous	-
17	937516		Shelf Stud Saddle (r.s.)		Appelez-nous	-
18	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
19	512900		Stud Retainer Evaporator Baffle		Appelez-nous	-
21	521878		Stud Shelf		Appelez-nous	-
22	936957		Shelf, Stud		Appelez-nous	-
23	937513		Shelf, Stud		Appelez-nous	-
24	659598		Hole, Plug		Appelez-nous	-
25	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
26	982321		Slide, Freezer Bin		Appelez-nous	-
27	537095		Expansion Clip		Appelez-nous	-
28	487979		Screw, 8 X 1		Appelez-nous	-
29	519890		Hole, Plug		Appelez-nous	-
30	936787		Shelf, Cantilever		Appelez-nous	-
31	849021		Trim, Shelf		Appelez-nous	-
32	1108782		Glass, Cantilever Shelf		Appelez-nous	-
33	849028		Reflector, Cantilever		Appelez-nous	-
34	1110034		Pan Slide & Cover		Appelez-nous	-
36	987420		Crisper Basket, Rear		Appelez-nous	-
37	987419		Crisper Gasket Front		Appelez-nous	-
38	848947		Solid Shelf		Appelez-nous	-
39	985522		Solid Shelf Trim		Appelez-nous	-
40	981500		Shelf, Freezer		Appelez-nous	-
41	985590		Shelf, Freezer Trim		Appelez-nous	-
42	935420		Shelf Reflector		Appelez-nous	-
43	939348		Clip, Reflector		Appelez-nous	-
44	986975		Shelf, Ice Cube Pan		Appelez-nous	-
45	985590		Shelf Trim, Ice Pan		Appelez-nous	-
46	1110257		Freezer Bin, Plastic				$ 0.61
47	1110256		Pan, Crisper		Appelez-nous	-
54	988255		Overlay, Front Cover		Appelez-nous	-
55	1110254		Pan		Appelez-nous	-
57	WP982704		Container, Utility   (Replaces: 1108734)				$ 32.55
59	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
60	943218		Light Lens, Refrigerator		Appelez-nous	-
61	938572		Light Lens, Crisper		Appelez-nous	-
62	984552		Support Light Lens, Refrigerator		Appelez-nous	-
63	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
64	985456		Light Lens, Freezer		Appelez-nous	-
65	W11625904		Pan, Ice Cube   (Replaces: 940094)				$ 67.83
66	837142		Trim, Ice Pan		Appelez-nous	-
